نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting
برند:
Baum Kunststoffe GmbH
مشخصات:

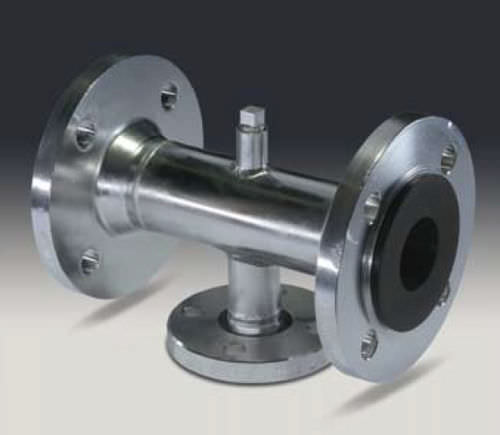

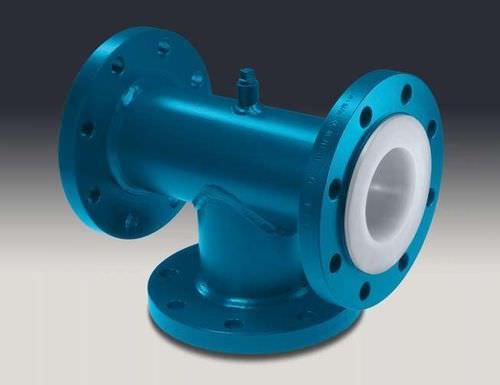

Tees (PN 10)
Lining-Materials:
* up to diameter nominal DN1 100 (one-piece): PFA (virgin or conductive)
* ab Nennweite DN1 125 (two-piece): PTFE (virgin or conductive)
* up to diameter nominal DN1 300 (two-piece): PP
PFA-lined tees are also available as Lateral-Tees.
Different lining thicknesses and flange designs on request.

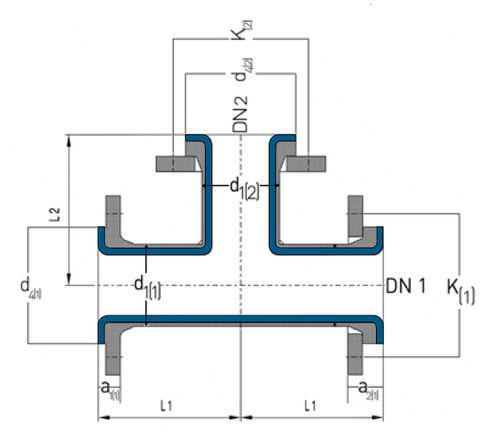

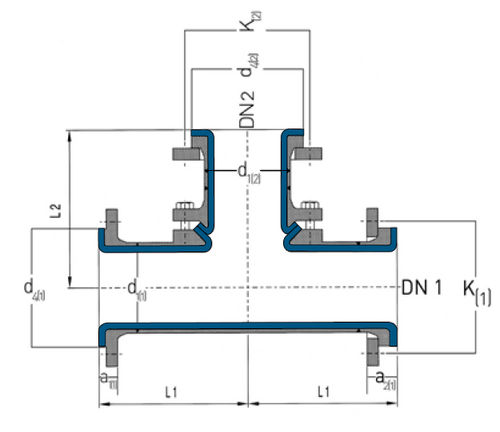

Flange design
* loose-loose-loose
* fix-loose-loose
* fix-fix-fix
Other pressure rates:
* PN 16
* PN 25
* PN 40
Material: carbon steel and stainless steel
special features: earthing studs, earthing lugs, flange-stopper, final painting.
توضیحات:
Applications
hydraulic
Attachment
flange
Configuration
T
Material
PTFE
Other characteristics
PTFE-lined
