نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting EHG-DIN2 series
برند:
Anderson-Negele | Negele Messtechnik GmbH
مشخصات:
In the CLEANadapt system, which has been specially developed for food applications, flow-optimised pipe Tees, weld-in sleeves or adapters for existing process connections are easily integrated into tanks or pipes and the sensors are screwed in.
Hygienic sealing principle: maintenance-free and hygienic adaptation without dead legs, elastomers, seals or Teflon tape
Three thread sizes (M12, G½” and G1″), universal application: sensors for temperature, point level, continuous level, flow, pressure, conductivity and turbidity can be integrated easily

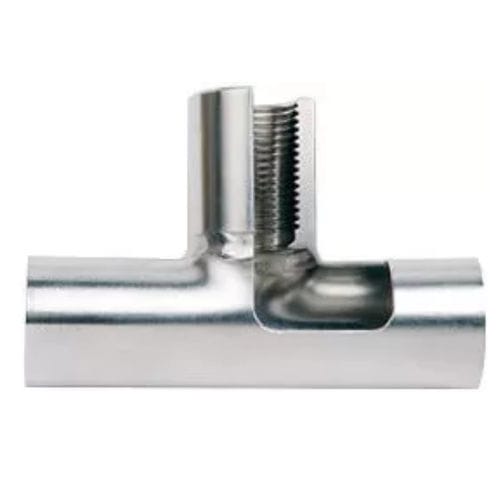

Simple, flexible installation: Weld-in sleeves (EMZ, EMK, EMS, KEM) for tanks and pipes / Pipe Tees (EHG, for orbital welding) for pipes from DN15 to DN100. Process adapters (AM…) for existing process connections
For an overview on all advantages and benefits of our process connections we recommend our brochure “Hygienic installation systems for Food Applications”.
توضیحات:
Applications
hydraulic
Attachment
screw-in
Configuration
T
Material
PEEK
Other characteristics
hygienic, for sensors, universal
Diameter
Min.: 15 mm(0.591 in)Max.: 100 mm(3.937 in)
Operating pressure
10 bar, 50 bar(145.04 psi, 725.19 psi)
