نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:
Hydraulic fitting TA RED
برند:
Aliaxis
مشخصات:

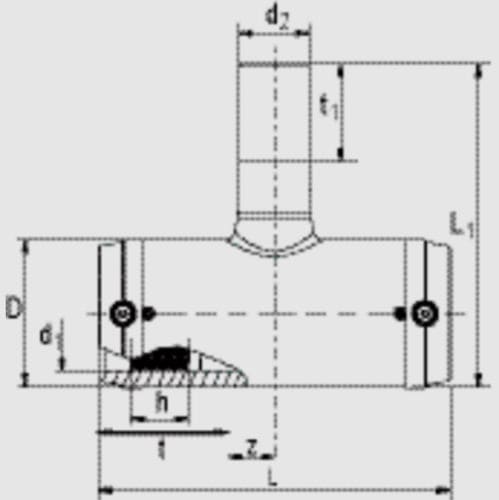

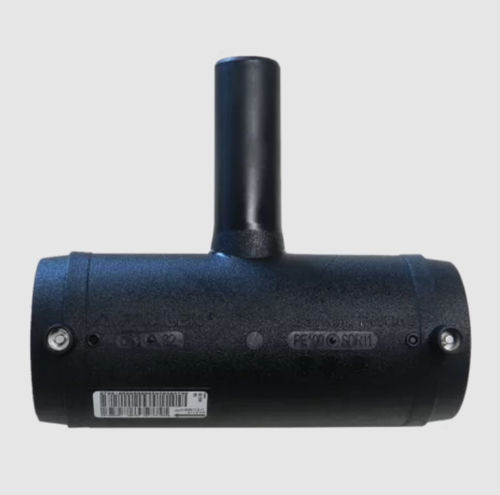

T-piece TA RED SDR 11 with reduced spigot
Gas, water and H2
Reduced spigots
Safety technology
DVGW test mark: DV-8601AU2248, DV-8606AU2249 and DV-8611AU2250
Areas of Application
The FRIALEN reduced TA red pieces are used for pipe outlets of HD-PE pipelines.
Assembly Instructions
The fusion of the pipe ends with the FRIALEN TA red takes place by FRIALEN-fusing – leakproof and longitudinally strong.
The pipe ends are prepared (removing the oxide layer/cleaning) according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”).
Good reasons for using the FRIALEN TA red:
Large coupler depth for ease of pipe guiding (no holding clamps required)
At dim. up to d1 63, Length of outlet spigot dimensioned for two fusion operations
Extra wide fusion zones
Maximum stability through great wall thickness
Cold zones at the front side and in the middle of the coupler
Exposed heating coil for direct heat transmission to the pipe
Small annular gap for build-up of optimum joining pressure in the fusion zone
Touch proof electric contacts
Durable batch marking
Individually wrapped for dirt protection
Additional barcode for tracing back the fitting (Traceability-Coding)
توضیحات:
Applications
hydraulic, for gas
Attachment
socket
Configuration
T
Material
PE
Other characteristics
for hoses, reduction
Diameter
Max.: 63 mm(2.48 in)Min.: 20 mm(0.787 in)
Operating pressure
10 bar, 16 bar(145.04 psi, 232.06 psi)
