نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

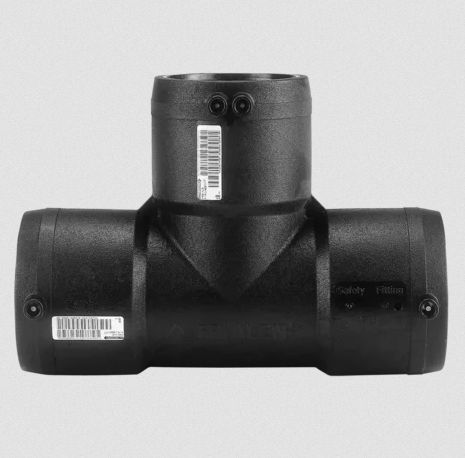

Hydraulic fitting T
برند:
Aliaxis
مشخصات:
Gas, water and H2
Safety technology
DVGW test mark: DV-8606AU2249 and DV-8611AU2250
Areas of Application
The FRIALEN T-pieces are used for equal pipe outlets of HD-PE pipelines.
Assembly Instructions
The fusion of the pipe ends with the FRIALEN T-piece takes place by FRIALEN electrofusion – leakproof and longitudinally strong.
The pipe ends are prepared according to the general installation instructions (see “Assembly Instructions for FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. The FRIALEN-T pieces have a straight passage fusible in one step. Therefore a total of only two fusions are necessary.
Good reasons for using the FRIALEN T-piece:
Large coupler depth for ease of pipe guiding (no holding clamps required)
Extra wide fusion zones
Maximum stability through great wall thickness
Cold zones at the front side and in the middle of the coupler
Exposed heating coil for direct heat transmission to the pipe
Small annular gap for build-up of optimum joining pressure in the fusion zone
Touch proof electric contacts
Durable batch marking
Individually wrapped for dirt protection
Additional barcode for tracing back the underground fitting (Traceability-Coding)
توضیحات:
Applications
hydraulic, for gas
Attachment
tapped
Configuration
T
Material
PE
Other characteristics
for hoses, electrofusion, underground
Diameter
Max.: 315 mm(12.402 in)Min.: 75 mm(2.953 in)
Operating pressure
10 bar, 16 bar(145.04 psi, 232.06 psi)
