نام محصول:
اتصالات هیدرولیکی
نام انگلیسی:

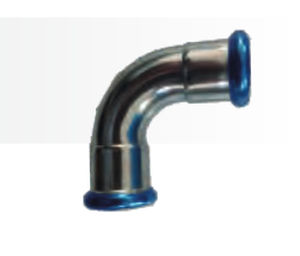

Hydraulic fitting 542 03 0000 02
برند:
Airpipe Europe
مشخصات:
AQUApipe stainless steel pipes 304/1.4301 diameters 18mm to 108mm are compatible with other fittings 18mm to 108mm in material 304/1.4301, 316/1.4401 or 316L/1.4404.
AQUApipe press fittings 304/1.4301 diameters 18mm to 108mm are compatible with DVGW pipes OD 18mm to 108mm in material 304/1.4301, 316/1.4401 or 316L/1.4404.
• – Complete system in AISI 304 – EN/DIN 1.4301.
• – Pipe diameters from 18mm to DN250, with bending capability.
• – Press fittings for diameters 18mm to 108mm: compatible with DVGW pipes and M-profile pressing jaws/collars.
• – Clamp connectors for diameters DN150 to DN250: unique connection technology, alternative to welding and dismountable.
• – NBR seal suitable for most industrial fluids (EPDM and FKM spare seals).
• – Silicone Free, pipe end protected with plastic cap, fittings in plastic bag.
• – Max. Vacuum level: 1 mbar absolute.
• – Working Temperature: -20°C to +100°C.
• – CE certificate acc. to European Pressure Equipment Directive 2014/68/EU.
• – Meets ISO 8573-1 Class 1-1-1 to convey clean compressed air.
• – The materials comply with CE regulation 1935/2004 forfood application.
• – 10-year warranty.
توضیحات:
Applications
hydraulic, for gas
Attachment
socket
Configuration
90° angle
Norms
ISO, DIN
Material
silicone-free, stainless steel
Other characteristics
with EPDM seal
Diameter
Min.: 18 mm(0.709 in)Max.: 108 mm(4.252 in)
Operating pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.06 psi)
