نام محصول:
اتصالات هوای فشرده
نام انگلیسی:
Compressed air fitting 2807 series
برند:
SENGA
مشخصات:
Push-in fittings – 2800 series
Areas of application : compressed air, vacuum
Technical features

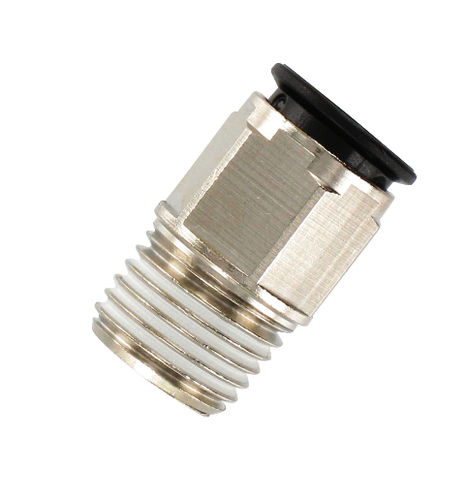

– straight fitting’s body in nickel plated brass
– others fittings in acetalic resin (POM)
– screw in nickel plated brass, parallel thread
– oil-proof rubber packings NBR
– working pressure : 0 ÷ 16 bar
– working temperature : -20°C ÷ 70°C
توضیحات:
Applications
for compressed air, for vacuum
Attachment
screw-in, push-in
Configuration
90° angle, T, Y
Norms
BSP
Material
POM, nickel-plated brass, stainless steel
Gender
male, female
Other characteristics
with O-ring, union, bulkhead, 360° adjustable, corrosion-proof, economical, double-outlet
Diameter
Min.: 4 mm(0.157 in)Max.: 14 mm(0.551 in)
Operating pressure
Min.: -0.99 bar(-14.36 psi)Max.: 16 bar(232.06 psi)
