نام محصول:
اتصالات هوای فشرده
نام انگلیسی:

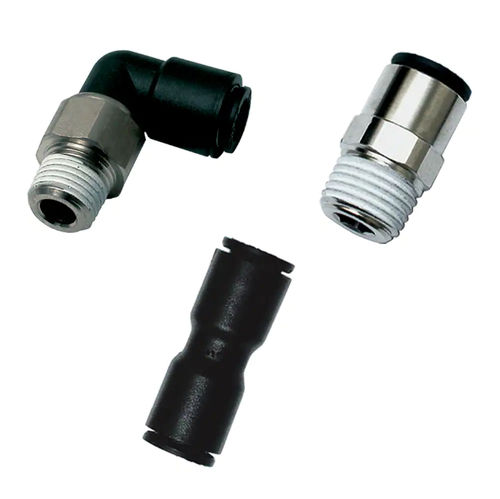

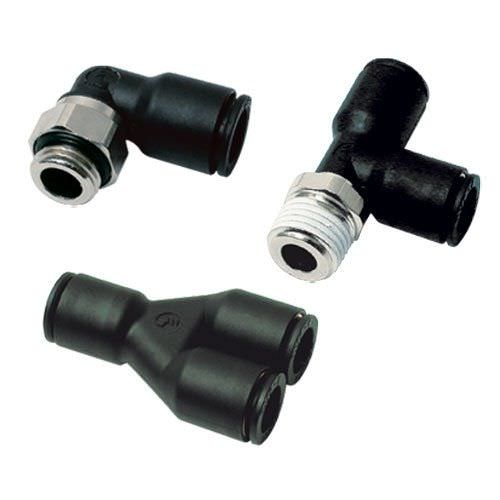

Compressed air fitting LF 3000®
برند:
Parker Legris
مشخصات:
The LF 3000® pneumatic fitting range, with its wide variety of shapes and configurations, allows you to find the perfect connector to meet your needs and thus optimise the use of
your equipment.
The push-in fitting is the most intuitive way of connecting tubes to a fitting in order to create a fluid distribution network. Thanks to its quick installation, versatility and exceptional lifespan, the push-in fitting contributes to improving machine efficiency. Moreover, the advanced patented design of the LF 3000® contributes to reducing total
cost of use.
Features/Benefits:
– – Extreme Durability for Optimum Profitability
• – 40 years of expertise
• – Conforms to ISO 14743
• – Idéal for vacuum or pressure applications
• – Tried-and-tested longevity according to Dl 2006/42/CE requirements
• – Materials with high résistance
• – Durability of product and equipment
– – Maximum Machine Efficiency
• – 100% leak-tested in production
• – Full bore for optimum flow
• – Tube fixed during connection, preventing leakage
• – Excellent vacuum performance thanks to the patented sealing technology
– Productivity & Maintenance Improvement
• – Compact and aesthetic design: reduced dimensions for space-saving
• – Lightweight: reduced energy consumption of operating systems
• – Parallel threaded fitting with a patented captive O-ring seal
• – Maximum flexibility due to the wide product range
• – Date coding to guarantee quality and traceability
• – Automatic sealing guaranteed, in both static and dynamic applications
توضیحات:
Applications
for compressed air, for vacuum
Attachment
screw-in, quick, push-in
Configuration
T, 90° angle
Norms
ISO
Material
polymer, nickel-plated brass
Other characteristics
compact, for hoses, vacuum, lightweight
Diameter
Max.: 16 mm(0.63 in)Min.: 3 mm(0.118 in)
Operating pressure
20 bar(290.08 psi)
