نام محصول:
اتصالات هوای فشرده
نام انگلیسی:

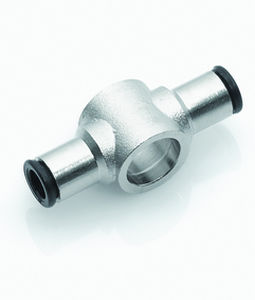

Compressed air fitting ipso 014
برند:
ITV
مشخصات:
– Push-in system with stainless steel elastic clamp
– Tube assembly with one movement
– For tubes in various materials (PU, PA)
– Small-scale and low weight
– O-ring in sealing channel — for rough surfaces
– Modular, flexible structure
– Hexagon socket for easy assembly
Operating temperature
-20°C bis +70°C
-20°C bis +80°C
For fittings with PVC seal
For fittings with NBR O-rings
Vacuum max 98%
Materials
NBR seals
Black thrust ring
CW614N and CW617N
plastic
Thread
Cyl. thread, DIN EN ISO 228
Con. thread, DIN EN 10226 (DIN 2999)
Metr. thread, DIN ISO 261
Cylindrical with O-ring seal
Tubes
For tubes in line with ISO 14743
Tolerances for external Ø
4 to 8: ±0.1
Tolerances for external Ø
10 to 14: ±0.15 (PU)
10 to 14: ±0.1 (PA)
Recommended materials, PU, PA
توضیحات:
Applications
for compressed air
Attachment
push-in, banjo
Configuration
T
Norms
ISO, DIN
Material
silicone-free, nickel-plated brass, stainless steel
Other characteristics
with O-ring, flexible, modular
Diameter
Max.: 12 mm(0.472 in)Min.: 4 mm(0.157 in)
Operating pressure
16 bar(232.06 psi)
