نام محصول:
اتصالات فولاد ضد زنگ
نام انگلیسی:

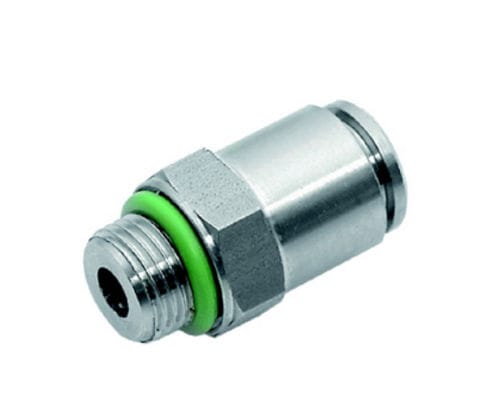

Stainless steel fitting A100X series
برند:
A&T Fluid solutions
مشخصات:
Push-in fittings are so defined as they allow to connect the tube to the fitting in a “instantaneous” way without using tools. The tightness of the tube takes place through an elastic clamp which holds the tube on the external diameter and releases it by pushing the suitable puller. This type of fittings is used in order to speed up the assembly phases mainly in reduced space and time-saving during connection of different pneumatic components.
توضیحات:
Applications
pneumatic
Attachment
push-in
Configuration
elbow, T, Y, cross
Material
stainless steel
Other characteristics
with O-ring, swivel, chemical-resistant, for the food industry, with EPDM seal, automatic lock, bulkhead, for the pharmaceutical industry, wide temperature range, for harsh conditions, corrosion-proof, for chemical applications, rugged, quick-disconnect, low-temperature, wall-mounted, vibration-resistant
Diameter
Max.: 12 mm(0.472 in)Min.: 4 mm(0.157 in)
Operating pressure
Max.: 16 bar(232.06 psi)Min.: 1 bar(14.5 psi)
