نام محصول:
اتصالات فنی
نام انگلیسی:
Technopolymer fitting 7000 series
برند:
CAMOZZI AUTOMATION
مشخصات:

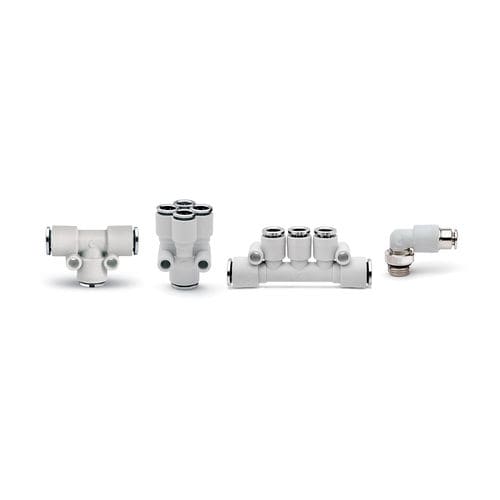

Series 7000 super-rapid fittings are realized in technopolymer.
Compact and lightweight, they are suitable for applications where weight can be a key factor.
The special collet, which has been designed properly for this series, provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and long service life, also after connections and disconnections of the tube are repeated several times.
The wide range of these fittings includes the LF version (“Stop Fitting”) which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected.
توضیحات:
Applications
for compressed air
Attachment
screw-in, quick
Configuration

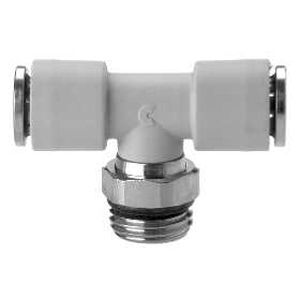

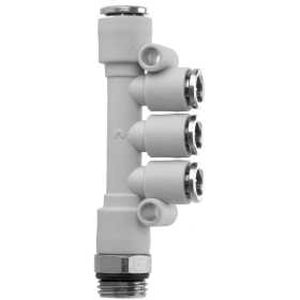

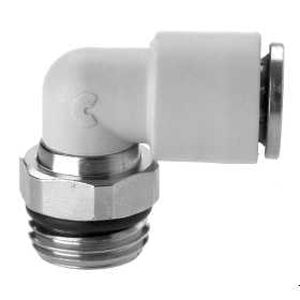

elbow, T, Y
Material
technopolymer
Other characteristics
compact, lightweight
Diameter
Max.: 16 mm(0.63 in)Min.: 4 mm(0.157 in)
Operating pressure
Max.: 16 bar(232.06 psi)Min.: -0.9 bar(-13.05 psi)
