نام محصول:
اتصالات شیمیایی
نام انگلیسی:
Chemical fitting 5800 X
برند:
SENGA
مشخصات:

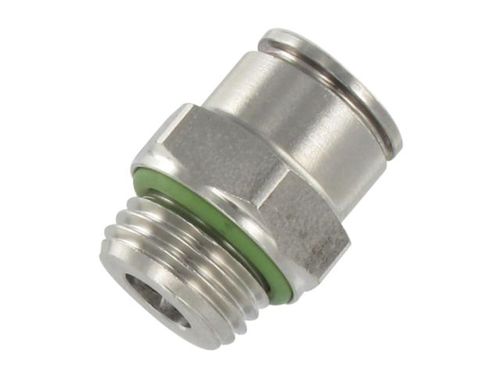

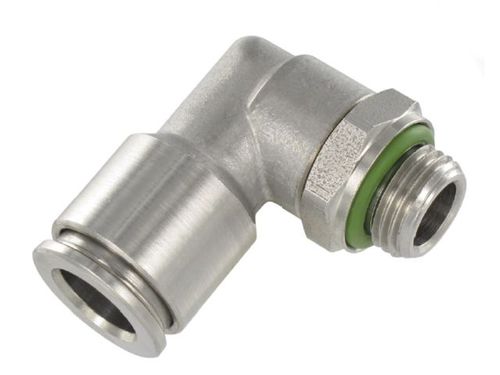

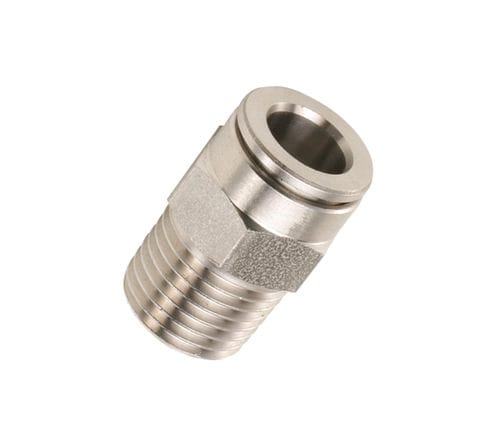

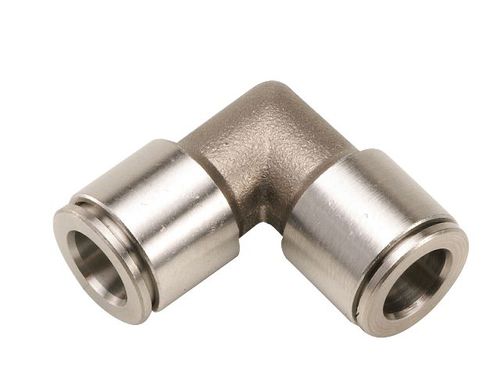

Push-in fittings – Stainless steel 5800X series
Areas of application : compressed air, vacuum, food industry
Technical features
– fittings in stainless steel AISI 316L
– o-rings in Viton
– vacuum : – 0.99 bar
– working pressure : -0.99 ÷ 18 bar
– working temperature : -20 °C ÷ 150°C
توضیحات:
Applications
for chemicals, for compressed air, for vacuum
Attachment
screw-in, push-in
Configuration
90° angle, T
Norms
BSP
Material
Viton®, stainless steel
Gender
male
Other characteristics
with O-ring, union, chemical-resistant, for the food industry, bulkhead, sealed, high-temperature, 360° adjustable, corrosion-proof
Diameter
Max.: 12 mm(0.472 in)Min.: 4 mm(0.157 in)
Operating pressure
Max.: 18 bar(261.07 psi)Min.: -0.99 bar(-14.36 psi)
