نام محصول:
اتصالات شیمیایی

نام انگلیسی:
Chemical fitting 1534 ENP;1524 ENP

برند:
Ridart srl

مشخصات:

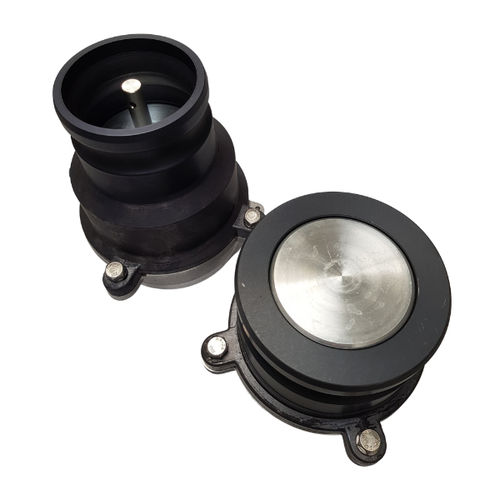

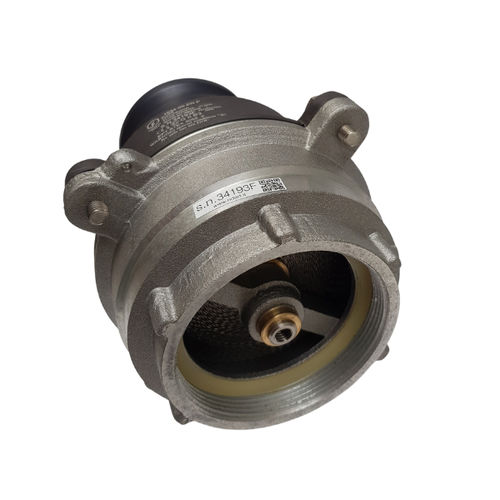

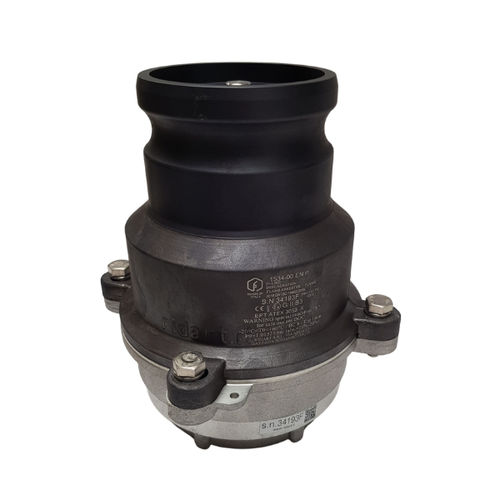

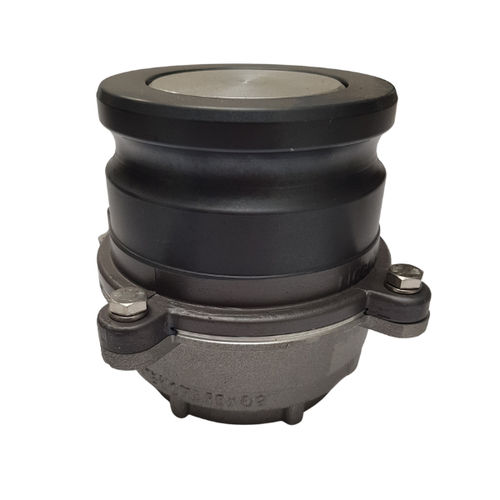

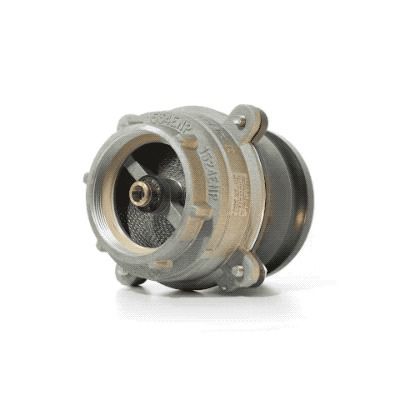

VAPOR RECOVERY ADAPTOR WITH IN LINE DEFLAGRATION FLAME ARRESTER

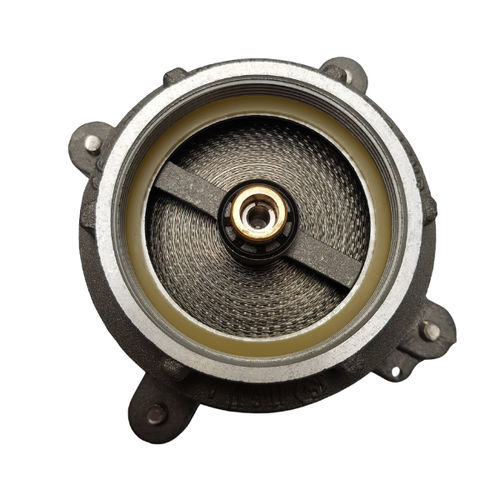

It’s a Protection System with ribbon coil: deflagration in-line flame arrester in
according with Directive 20H/34/EU and harmonized standard EN ISO 16852:2016
– Used for hydrocarbons or chemical Stage I vapor recovery line.
– The Flame Arrester avoids propagation of fire to the storage tank.
– Surface Protection System is for all ATEX zone (0.1 and 2).
The best performances allowed by the new regulation
– Max distance from the potential igniction is 50 pipe’s diameter.

Inflammable gases and vapours classification is necessary to correct use of flame arrester. UE-Type Examination Certifie ate EPT 18 ATEX 3053 X is for Explosion Group “IIB3″ tested with Ethylene and compatible for all gas with MESG > 0.65 mm for example: Ammonia, Industrial methane, Blas-furnace gas.
Carbon monoxide. Propane, Butane. Pentane, Esane. Eptane. Iso-octane, Oec-ane. Benzene, Xilene. Cyclohexane. Acetone, Ethyl-methyl-ketone, Methyl acetate. Ethyi acetate. Normal propyl acetate. Normal butyl acetate. Amyl acetate. Cloroethylene. Methanol. Ethanol, Iso Butanol. Normal Butanol. Amyl alcohol and Ethyl nitrite Use only for gas or vapor with MESG > 0.65 mm.
Burning rating BC=b. tel=1 min. Max operational temperature 60°C.

توضیحات:
Applications
for chemicals, for fuel, for gas

Attachment
camlock

Norms
ISO, BSP

Material
aluminum

Gender
male-female

Other characteristics
security, quick-disconnect, rugged, for tanker trucks

Diameter
3 in, 4 in

Operating pressure
Max.: 230 bar(3,335.87 psi)Min.: 8 bar(116.03 psi)
