نام محصول:
اتصالات شکسته
نام انگلیسی:
Breakaway fitting
برند:
Driplex Engitech LLP
مشخصات:

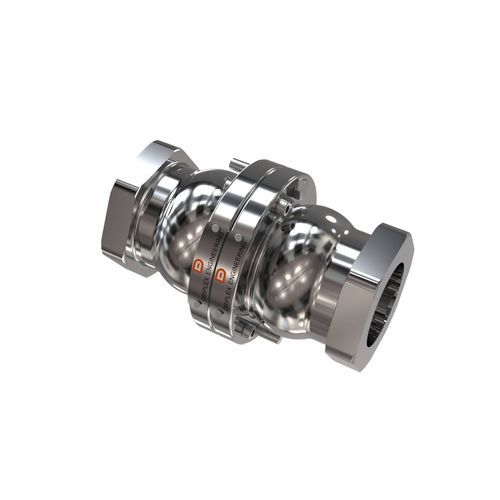

Marine BreakAway Couplings
Hoses strings during bunkering when subjected to unwarranted load caused by pull incidents can rupture hoses and can create massive spills. The DRIPLEX Marine BreakAway couplings are engineered to prevent and reduced spillage during such incidents.

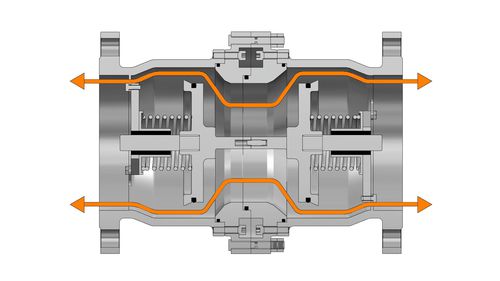

Marine BreakAway Couplings are designed to break at a precalculated force axially only. Marine BreakAways are installed only between to hoses. As the couplings is the weakest link in the entire loading or unloading setup they are designed to break first. This ensures safety of the hoses and to the environment around.
Size Range
2 inch to 4 inch
Material
Stainless Steel & Aluminium. Other exotic material available on request.
Seals
FKM (Viton®), NBR (Nitrile), EPDM and FFKM (Chemraz®)other seals available on request.
End Conections
Threaded – BSP, NPT, ISO
Flange – ANSI, ASME, ISO, DIN
Working Pressure
Upto 25 bar
توضیحات:
Applications
hydraulic
Attachment
threaded, flange
Norms
ISO, DIN, BSP, NPT
Material
stainless steel, aluminum
Other characteristics
sealed, breakaway, marine
Diameter
Min.: 2 inMax.: 4 in
Operating pressure
Min.: 0 bar(0 psi)Max.: 25 bar(362.59 psi)
