نام محصول:
اتصالات برنجی روکش نیکل
نام انگلیسی:

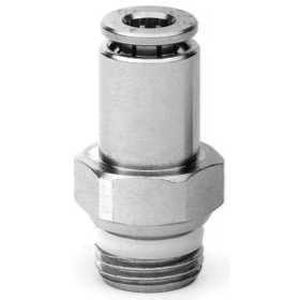

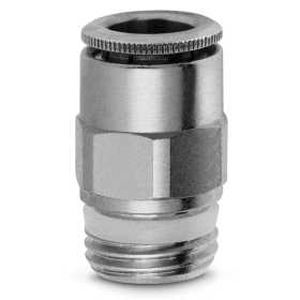

Nickel-plated brass fitting 6000 series
برند:
CAMOZZI AUTOMATION
مشخصات:
Series 6000 super-rapid fittings have been designed with a special collet which provides an homogeneous tight on the whole surface of plastic tubes, thus ensuring high reliability and a long service life, also after connections and disconnections of the tube are repeated
several times. Many types of threads are also available: metric, BSP and BSPT.
The Sprint® models are characterized by great adaptability of male threads with BSP parallel (ISO-228) female threads even in the presence of non-flat or irregular surfaces. This is possible thanks to a Teflon ring on the male thread, which guarantees a perfect seal between the two threads.
The wide range of these fittings includes the LF version (“Stop Fitting”) which is equipped with a self-retaining device interrupting the air flow when the tube is disconnected and restores it when reconnected.
توضیحات:
Applications
pneumatic
Attachment
screw-in, quick
Configuration
elbow, T, Y, cross
Material
nickel-plated brass
Diameter
Max.: 16 mm(0.63 in)Min.: 3 mm(0.118 in)
Operating pressure
Max.: 16 bar(232.06 psi)Min.: -0.9 bar(-13.05 psi)
