نام محصول:
اتصالات برنجی روکش نیکل
نام انگلیسی:

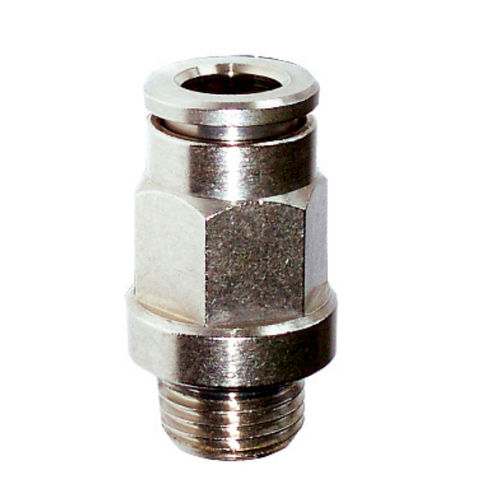

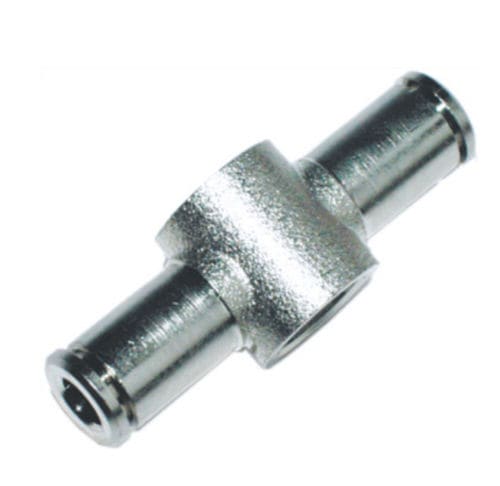

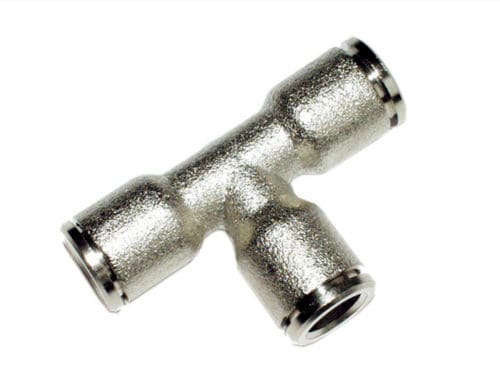

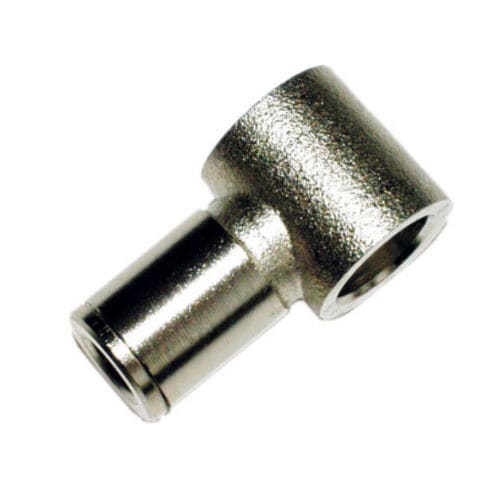

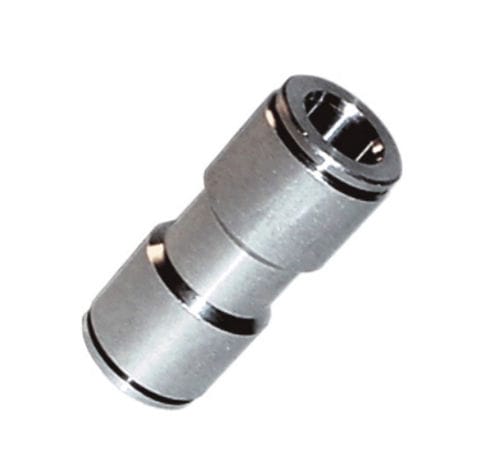

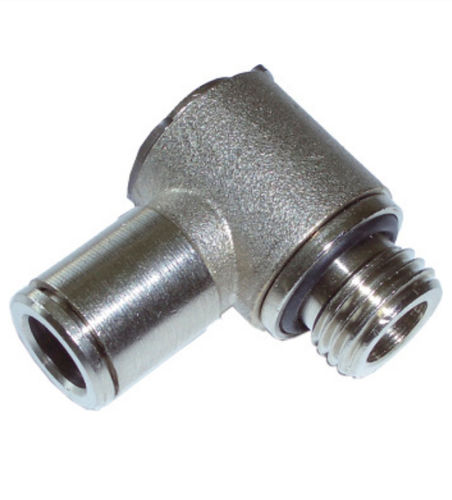

Nickel-plated brass fitting A100 series
برند:
A&T Fluid solutions
مشخصات:
Push-in fittings are so defined as they allow to connect the tube to the fitting in a “instantaneous” way without using tools. The tightness of the tube takes place through an elastic clamp which holds the tube on the external diameter and releases it by pushing the suitable puller. This type of fittings is used in order to speed up the assembly phases mainly in reduced space and time-saving during connection of different pneumatic components.
توضیحات:
Applications
pneumatic
Attachment
push-in
Configuration
elbow, T, Y, cross
Material
nickel-plated brass
Gender
male, female
Other characteristics
swivel, with O-ring, union, chemically resistant, bulkhead, for pharmaceutical applications, wide temperature range, for harsh conditions, rugged, oil-resistant, liquid-tight, vibration-resistant, high-temperature, quick-disconnect, automatic lock, automatic, orientable
Diameter
Min.: 4 mm(0.157 in)Max.: 16 mm(0.63 in)
Operating pressure
Min.: 1 bar(14.5 psi)Max.: 16 bar(232.06 psi)
