نام محصول:
اتصالات آرنج

نام انگلیسی:
Elbow fitting NEC series

برند:
INTERFLEX SL

مشخصات:

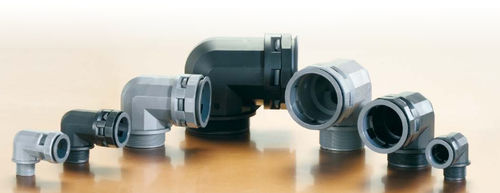

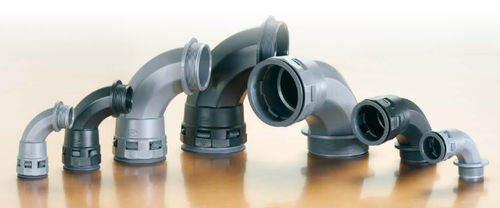

90° elbow fitting with male metric thread according to EN 60423 for fixing the ends of flexible corrugated conduits to the cable entries on control panels, terminal boxes on electric motors, etc., in accordance with standard EN 60204 (Safety of Machinery). They are notable for their high tensile strength and tightness

• Made of specially modified polyamide (PA6)
• Free of halogen, phosphorus and cadmium
• Self-extinguishing
• Shock-resistant
• Temperature range: -40ºC to +105ºC (150ºC short term)
• IP66 protection. IP68/IP69 with ORJ and PLJ sealings
• “Easy-click”: quick assembly and removal of the conduit without tools
• Colours: dark grey and black

توضیحات:
Applications
hydraulic

Attachment
screw-in, quick

Configuration
elbow

Material
polyamide, PA6

Gender
male

Other characteristics
standard, flexible, IP66

Diameter
Max.: 42 mm(1.654 in)Min.: 10 mm(0.394 in)
