نام محصول:
اتحادیه چرخشی مایع مبرد
نام انگلیسی:
Refrigerant fluid rotary union ROTOKOMBI
برند:
Moog GAT GmbH
مشخصات:
Thanks to the ROTOKOMBI system you can combine all our rotary unions and slip rings with each other. We can provide you a rotary transmission solution from a single source.
Your benefits with GAT ROTOKOMBI systems
Liquids, gas, vacuum as well as electrical currents, signals and data
No interface issues between the individual components
Huge time and cost savings in the administrative effort
Customer-specific, modular, compact solutions
Our systems of rotary unions and slip rings ensure that an optimally adapted sealing system is available for any medium. For any type of electrical transmission a corresponding system is selected to ensure adequate reliability. Thanks to the modular design, individual components can be replaced, retrofitted or upgraded as necessary.
Designed to suit your applications
All components are selected and combined to meet your specific demands, without limitations to the number of electrical poles, media or size. Special solutions such as ATEX/IECEx or certifications according to UL/CSA regulations are also available on request.

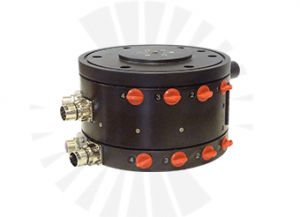

ROTOKOMBI M45 L8 + ESR160/12-QC
Rotary Union ROTOPACK + Slip Ring ROTOFLUX
Speed [rpm]120, cycling
HighlightsExtremely compact rotary transmission system for air and electric power with high torsional rigidity
Rotary Union ROTOPACK
Sealing systemContact seal
Number of channels8
MediumAir
Pressure [bar]10
Slip Ring ROTOFLUX
Transmission systemGold / gold
Number of channels53
MediumPowerProfibus
توضیحات:
Medium
for refrigerant fluids
Applications
for machine tools
Other characteristics
compact, high-speed
Rotational speed
Min.: 1 rpm(6.28 rad.min-1)Max.: 24,000 rpm(150,796.45 rad.min-1)
Pressure
Min.: 1 bar(15 psi)Max.: 140 bar(2,031 psi)
