نام محصول:
اتحادیه دوار نفتی
نام انگلیسی:

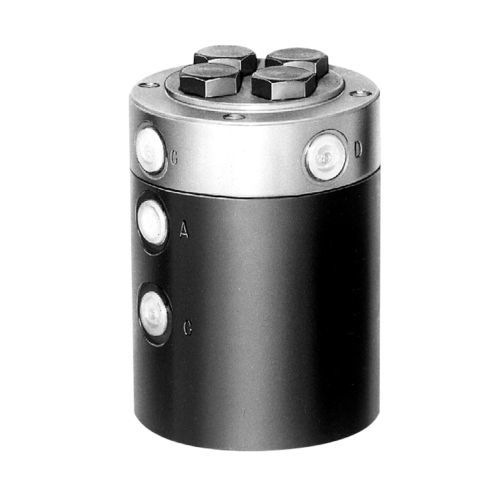

Oil rotary union F9.280-4 series
برند:
Römheld GmbH Friedrichshütte
مشخصات:
Pipe thread
with/without leakage oil recirculation
ND 5
Rotary couplings supply the pressure oil to rotating and swivelling installations. They are mounted in the centre of rotation of the installation.
Operating conditions
When selecting, operating pressure and speed have to be taken into account. Only use hydraulic oil of the viscosity classes 22, 32 and 46.
The rotary coupling has to be connected to the power unit on all levels to ensure sufficient lubrications of the seals.
The rotary couplings must only be used in a temperature range between + 10 °C and
+ 60 °C. This also applies to possible special versions with FKM seals.
Operating conditions, tolerances and other data see data sheet A 0.100.
Versions
with or without leakage oil recirculation in the housing
Technical data
Max. admissible number of rotations: see catalogue sheet
Starting torque: see catalogue sheet
توضیحات:
Medium
for oil
Number of passages
4-passage
Applications
hydraulic
Pressure
Max.: 50 bar(725 psi)Min.: 10 bar(145 psi)
