نام محصول:
اتحادیه دوار آب

نام انگلیسی:

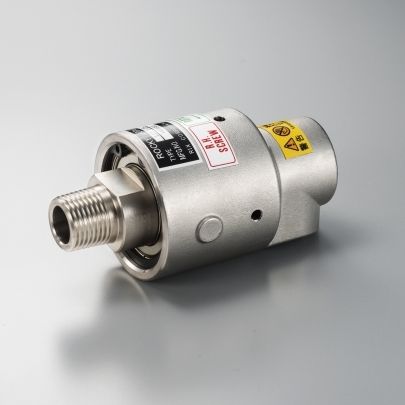

Water rotary union LC series

برند:
RIX Europe

مشخصات:

For water and hot water(Applicable industry: General machinery)

Another customer of the business

Steel
Rubber tire
Environment
High function material

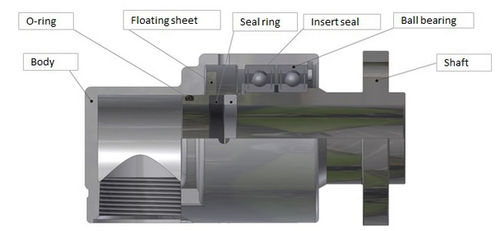

Long life: Fine ceramic and special carbon is adopted as a mechanical seal materials.

・High reliability: Stainless steel is adopted for main body material.
There is no seal force trouble caused by accumulated contamination
　 in the fluid and water scale on spring part because spring for seal force
　 is not in the fluid.　

・Low torque: Low torque is achieved because optimal seal materials and surface pressure
is adopted for machanical seal part and ball bearing is also adopted.

・ Standard size 1/2 ~ 2

※Contact us if the size is over standard type.

・ Connection part shape: Screw (RH or LH) or Flange

توضیحات:
Medium
for water

Number of passages
multi-passage

Material
stainless steel

Other characteristics
screw-in, ball bearing, flange

Rotational speed
Max.: 3,500 rpm(21,991.15 rad.min-1)Min.: 0 rpm(0 rad.min-1)

Pressure
Max.: 23 bar(334 psi)Min.: 0 bar(0 psi)

Nominal size
Max.: 2 inMin.: 0.5 in
