نام محصول:
اتحادیه دوار آب
نام انگلیسی:

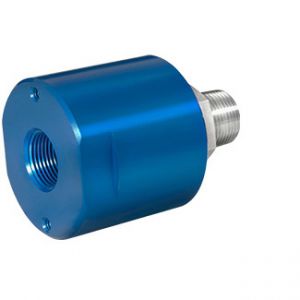

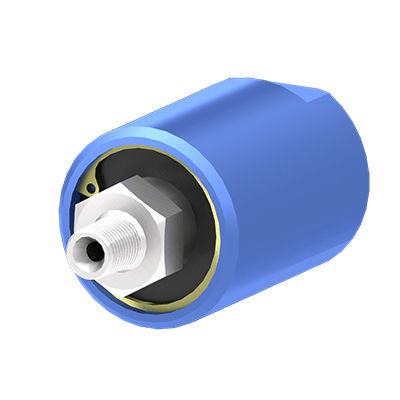

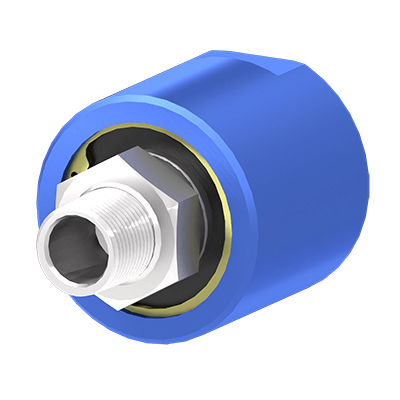

Water rotary union SPS(M) 5510
برند:
PES S.A
مشخصات:
The single passage SPSM Series rotary unions are small, lightweight but rugged and corrosion-resistant thanks to their aluminum construction with a stainless steel shaft.
* The use of liquid media is not recommended for this product. Please select from one of our other product lines or consult PES if your application requires use of liquid media.
The SPS(M) Series rotary unions give a single-pass solution for hydraulic, pneumatic or even vacuum applications that can be integrated directly with Thru-bore Slip Rings to combine a single fluid passage with power, signal and/or data transfer.
Advantages
Multipurpose solution for air, gas, oil, water or vacuum
Easy integration
High performances (pressure, rotating speed)
Benefits
Avoid the need of complex piping arrangements
Increased machinery performances
Paiping maintenance mitigated
Connector – 3/4″ BSPT
Overall length – 79,5 mm
Min Torque – 1,81 Nm
Passage Size – 19,0 mm
Slip Ring Option – Compatible / available
Maximum Vaccum 1 – 30 HG
Temperature Range 1 – -18°C à 105°C 2
توضیحات:
Medium
for water, for air, for oil, for vacuum, for gas
Material
aluminium, stainless steel
Other characteristics
compact
Rotational speed
500 rpm(3,141.59 rad.min-1)
Pressure
40 bar(580 psi)
Nominal size
Max.: 1 inMin.: 0.125 in
