نام محصول:
اتحادیه دوار آب
نام انگلیسی:
Water rotary union
برند:
MCPI SAS
مشخصات:

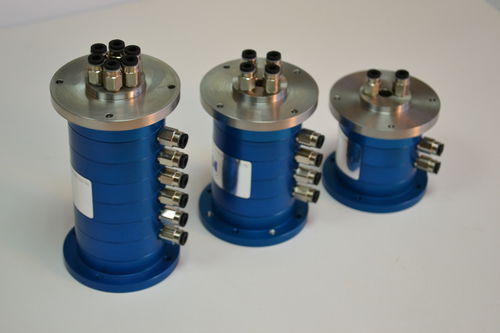

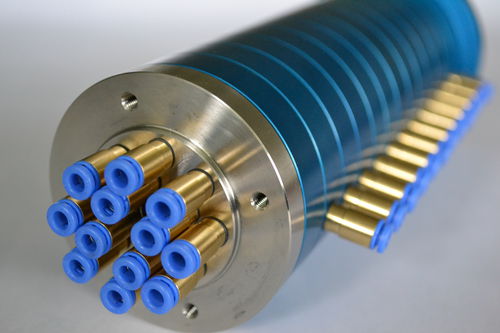

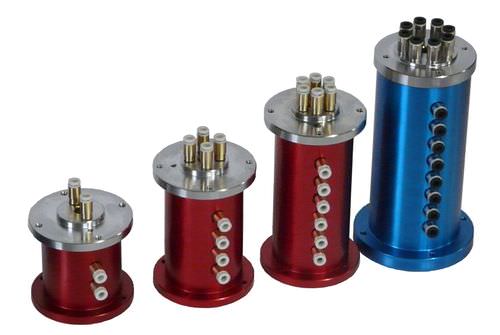

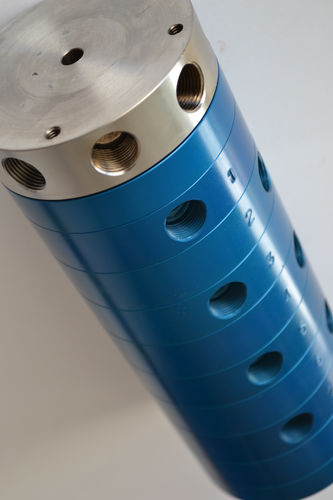

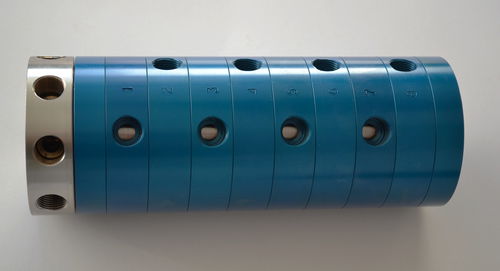

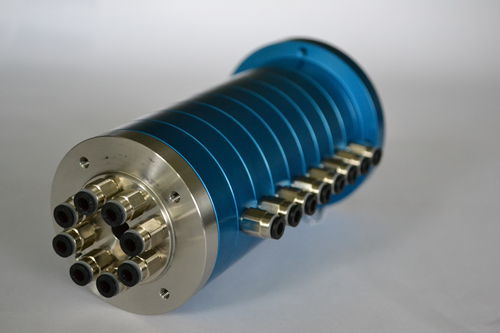

Multi passage rotary union with integrated slip ring.
A multi passage rotary Union is a machine element, making it possible to feed several mediums (compressed air, water, cooling fluids, vacuum…) from a stationary line into a rotating machine section.
In combined version, One multi circuits slip ring is integrated on the rotary union (for electrical power, signals…).
Number of passages avalaible : 2,4, 6, 8
Passage diameter (fluid), mm : 4 – 6 – 9 – 12- 18 mm
Max. air pressure with air : 6 Bar
Max pressure for oil : 50 Bar
Vacuum : -0.95 Bar
Max rotating speed : up to 500 rpm
Drive torque
0.3 à 1 N.m
Slip ring (option)
Number of circuits available
6-12-18-24-36-56
توضیحات:
Medium
for water
Number of passages
multi-passage
