نام محصول:
اتحادیه دوار آب
نام انگلیسی:

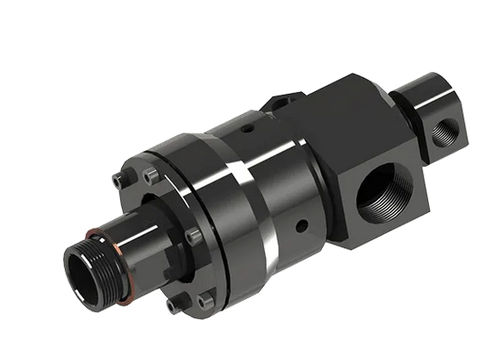

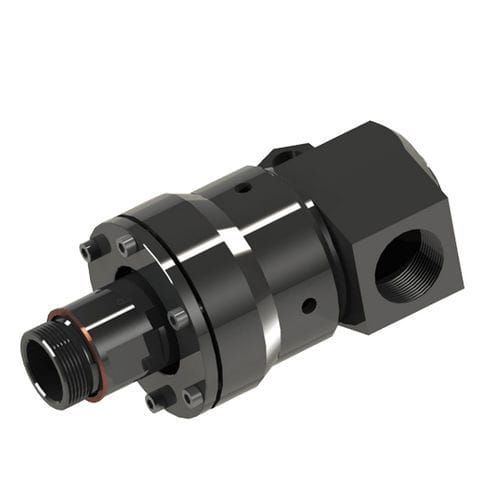

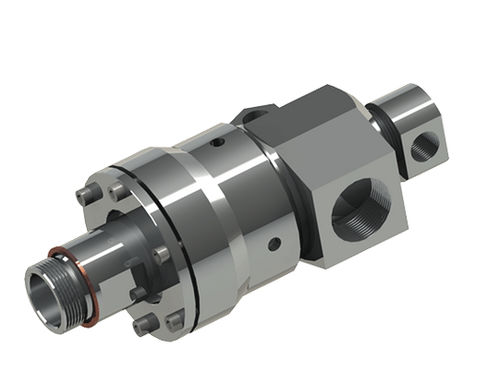

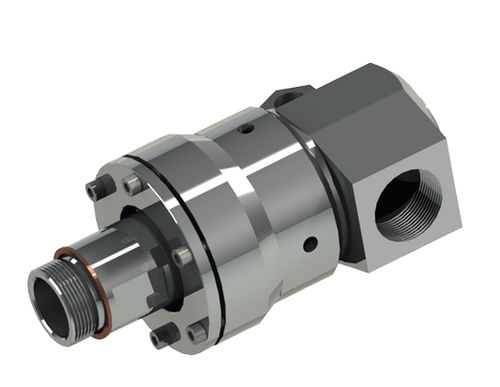

Water rotary union 9001 G-ND
برند:
HAAG + ZEISSLER Maschinenelemente GmbH
مشخصات:
Rotating joint type G-ND – new design with bellows system cartridge, graphite bushbearings, for universal use
Product characteristics
universal use – cooling, heating, clamping
with bellows sealing
cartridge fast change CD-cartridge-design
sealingmaterial ceramics/graphite. For coking heat transfer oil with temperature higher than 230 °C – Version HT with diamondhard sealface and hightemperature graphitesealring
graphite bushbearings – maintenance free
no elastomers – therefore no temperature and chemical resistance problems
no loose parts, f.e. springs
robust and less influence of dirty media
self supporting – no additional support necessary
available in stainless steel
توضیحات:
Medium
for water, for hot oil, for air, for vacuum, for steam, for chemicals
Number of passages
2-passage
Material
stainless steel
Rotational speed
700 rpm(4,398.23 rad.min-1)
Pressure
6 bar, 12 bar, 17 bar(87 psi, 174 psi, 247 psi)
Nominal size
Min.: 0.25 inMax.: 1.5 in
