نام محصول:
اتحادیه دوار آب

نام انگلیسی:

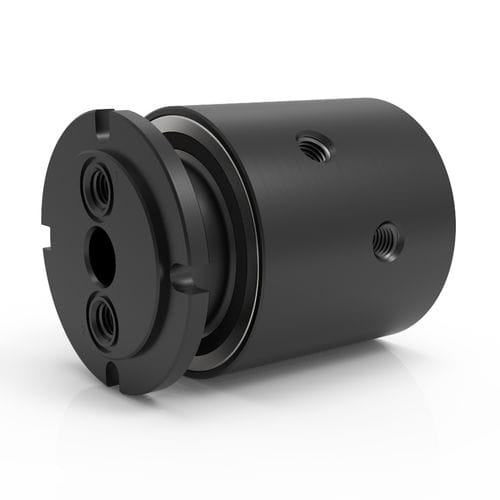

Water rotary union GP 2

برند:
DSTI – Dynamic Sealing Technologies

مشخصات:
The 2-passage, GP Series rotary unions feature specialized sealing technology suitable for vacuum and bidirectional pressures and two independent flow passages capable of transferring different media types simultaneously.

The carbon steel (black oxide) construction is suitable for air/gas, coolant, and hydraulic service. Stainless steel models are available to prevent corrosion for use with applications requiring water or corrosive media transfer (see GPS Series).

GP 2-passage models with NPT thread connections consist of a unique shaft configuration for easier installation, allowing the choice of mounting the shaft connections using the threaded passages or O-ring face seal glands for flush mounting the union to an interface. GP 2-passage models with BSPP thread connections are not available with O-ring face seal glands.

Need to combine fluid with electrical power, signal and/or data transfer? No problem. The GP Series rotary unions are designed to integrate directly with our standard electrical slip rings.

توضیحات:
Medium
for water, for air, for oil, for vacuum, for gas

Number of passages
2-passage

Applications
hydraulic

Material
stainless steel, carbon steel

Rotational speed
Max.: 500 rpm(3,141.59 rad.min-1)Min.: 0 rpm(0 rad.min-1)

Pressure
Max.: 515 bar(7,469 psi)Min.: 0 bar(0 psi)

Nominal size
Max.: 1 inMin.: 0.125 in
