نام محصول:
آستین پوشیده از سیلیکون
نام انگلیسی:

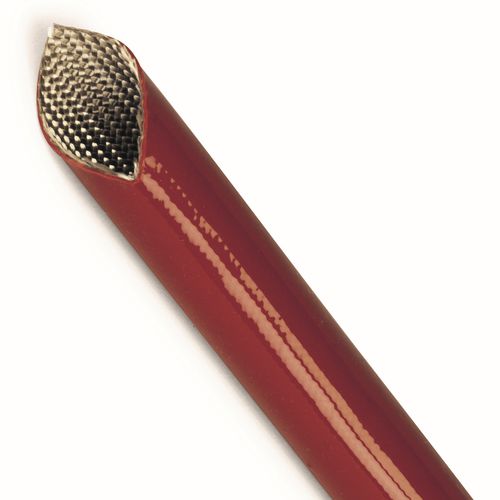

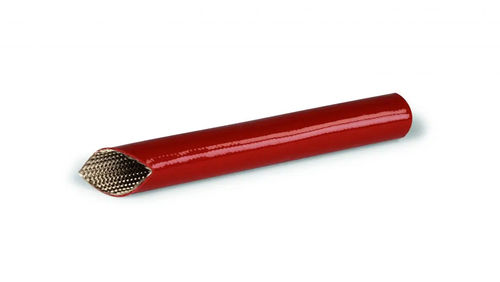

Silicone-coated sleeve SCS
برند:
FAVIER TPL
مشخصات:
Characteristics
• Temperature class :C
• Continuous working temperature: from -60°C to +250°C. Peaks at +290°C (few hours)
• Dielectric strength: 1.5 to 15kV
• Flammability: self-extinguishing
• Good mechanical resistance
• Good resistance to UV
• Resistant to transformer oils
• Good compatibility with class C impregnation varnishes
• Good behaviour with soldering iron
• Good behaviour with liquid fuels: no decomposition
• Halogen free
• Watertight
• Very flexible
توضیحات:
Type
thermal protection, insulating
Structure
braided
Applications
for cables, for pipe, temperature probe
Material
silicone, fiberglass
Protection level
halogen-free, abrasion-resistant, self-extinguishing, UV-resistant, oil-resistant, moisture-resistant, fire-resistant, watertight
Color
black, white, gray, red, yellow, orange, blue, silver-colored, brown, green
Other characteristics
flexible, high-temperature, silicone-coated
Diameter
Max.: 60 mm(2.4 in)Min.: 0.5 mm(0 in)
Temperature
Max.: 250 °C(482 °F)Min.: -60 °C(-76 °F)
Length
Max.: 400 m(1312’04” )Min.: 15 m(49’02” )
