نام محصول:
آستین محافظت
نام انگلیسی:

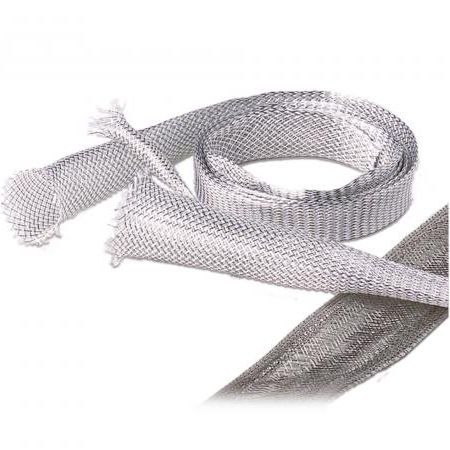

Protection sleeve WE-ST
برند:
Würth Elektronik eiSos
مشخصات:
Custom dimensions available
Conductive nylon weave
Extremely light and strong material
Extremely flexible and heat resistant EMC network tube
Extremely high screening:
> 45 dB @ 100 MHz
> 29 dB @ 1 GHz (based on MIL-STD-225)
UL-VW-1
Applications
Optimal EMI protection for wires, cables, cabletrees and lines
Suitable for cable bunching
Depending on the use we recommend the closing with:
– Earthing cable connectors
– Earthing nylon clips
– Heat shrinking tubes
– Copper shielding films
– EMI screwed connections for cables
توضیحات:
Type
protection
Structure
tubular
Applications
for cables
Material
nylon, copper
Protection level
EMC
Other characteristics
flexible
Diameter
Min.: 1 mm(0 in)Max.: 35 mm(1.4 in)
Temperature
Min.: -60 °C(-76 °F)Max.: 160 °C(320 °F)
Length
100 m(328’01” )
