نام محصول:
آستین محافظت

نام انگلیسی:
Protection sleeve SL-RDX series

برند:
SAFEPLAST OY

مشخصات:

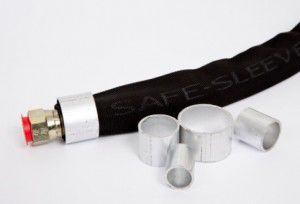

SAFE-SLEEVE protects people near-by a breaking hose (is pin hole-approved). Aluminum rings for attaching the Safe-Sleeve on the hose are also available.

Safe-Sleeve features

• Our standard textile sleeve

• Economical and safe choice for hose protection

• Protect people near-by a breaking hose

• Protect hydraulic hoses from abrasion

• Produced from polypropylene which is very hard-wearing and recyclable

• Endure acids and alkalis well

• Material fully recyclable

• Tolerate both freeze and heat

• UV-protected

• Excellent abrasion resistance

Why Safe-Sleeve?

European standard EN ISO 3457 states that hydraulic hoses must be protected in following cases:

-operating pressure exceeds 5 MPa (=50 bar)

-OR temperature exceeds 60 °C

-AND the hoses are in common operating place within 1 meter range from the operator and in case of hose breakage the direct fluid spray may reach the operator

In addition, the protectors must be strong enough to stop, spread or turn the fluid from directly hitting the operator once the hose breaks. Standards EN 12999 and EN 4413 also contain protection demands for hose assemblies.

Our Safe-Sleeve fulfils these demands!

Available Colors

Standard color is plain black, no printing.

Other colors also possible (MOQ 3 000 m per size).

Available Sizes and Lengths

It is recommended to choose a size which is a few millimetres larger than the hose to improve protection and make mounting easier. Whether there is a coupling already installed also affects the eligible size.

توضیحات:
Type
protection

Structure
flat

Applications
for hydraulic hoses

Material
textile, polypropylene, aluminum

Protection level
abrasion-resistant, acid-resistant, standard

Color
black

Other characteristics
flexible, woven

Diameter
Min.: 17 mm(0.7 in)Max.: 125 mm(4.9 in)

Temperature
Min.: -40 °C(-40 °F)Max.: 80 °C(176 °F)

Length
50 m(164’00” )
