نام محصول:
آستین قابل ارتقا
نام انگلیسی:
Expandable sleeve SCS-E
برند:
FAVIER TPL
مشخصات:

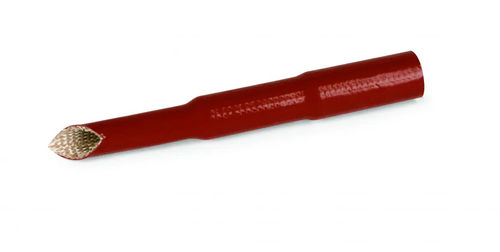

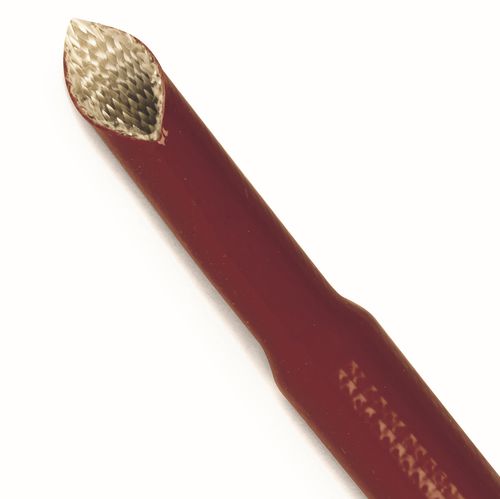

Expandable glass fibre braided sleeving coated with silicone rubber
Characteristics
• Temperature class: C
• Continuous working temperature: from -60°C to +250°C. Peaks at +290°C (few hours)
• Minimum expansion ratio: 1:2
• Dielectric strength after expansion: 3 kV (other voltages on request)
• Flammability: self-extinguishing
• Good mechanical resistance
• Good resistance to UV
• Resistant to transformer oils
• Good compatibility with class C impregnation varnishes
• Good behaviour with soldering iron
• Good behaviour with liquid fuels: no decomposition
• Halogen free
• Watertight
• Very flexible
توضیحات:
Type
insulating
Structure
braided
Applications
for cables
Protection level
halogen-free, self-extinguishing, UV-resistant, oil-resistant, flame-retardant, watertight
Color
black, white, gray, red, orange, blue, green
Other characteristics
flexible, expandable, silicone-coated, coated with rubber
Diameter
Max.: 45 mm(1.8 in)Min.: 2 mm(0.1 in)
Temperature
Max.: 250 °C(482 °F)Min.: -60 °C(-76 °F)
Length
25 m, 30 m, 50 m, 100 m, 200 m(82’00” , 98’05” , 164’00” , 328’01” , 656’02” )
