نام محصول:
کمپرسور بدون روغن
نام انگلیسی:

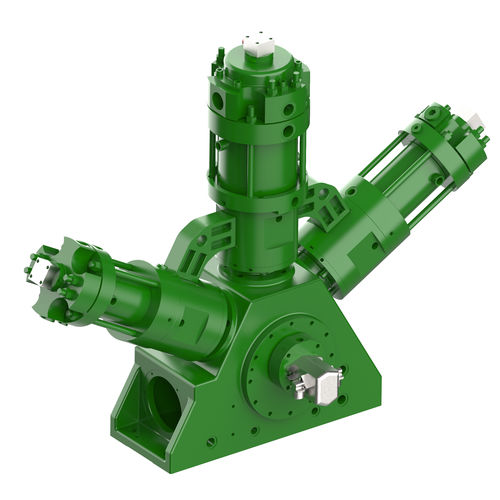

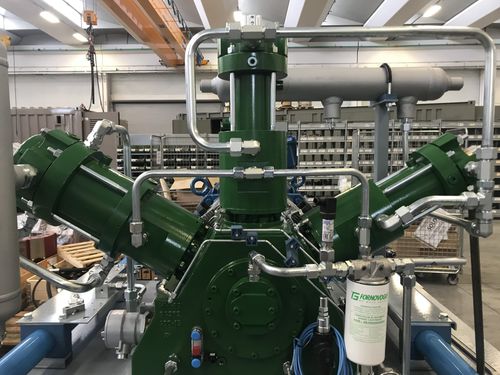

Oil-free compressor SA200
برند:
Fornovo Gas SpA
مشخصات:

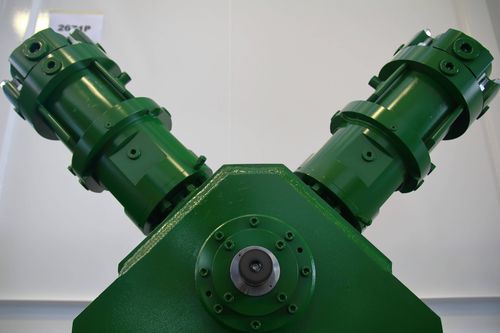

The SA200 reciprocating compressor offers high levels of efficiency and great versatility, enabling its use with numerous applications such as: roadside refuelling stations, stations for fleets of public transport vehicles, grid injection and industrial processing plant, even with gas made from biomass.
The SA200 compressor has some very important features: a compact footprint so it takes up very little space; the capability to operate with any intake pressure; vibration reduced to a minimum thanks to its perfect balance. Its other benefits are: simple to maintain, low oil consumption, low breakaway starting current, and low compression costs.
Configurations

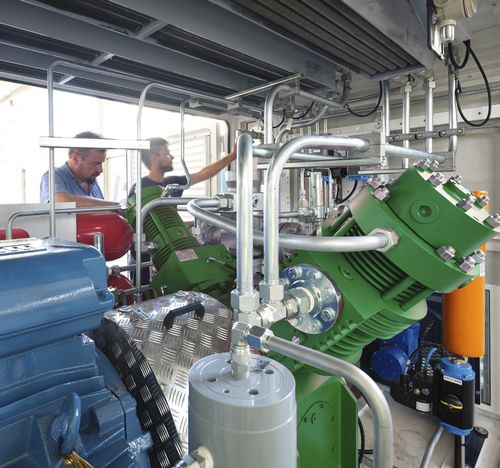

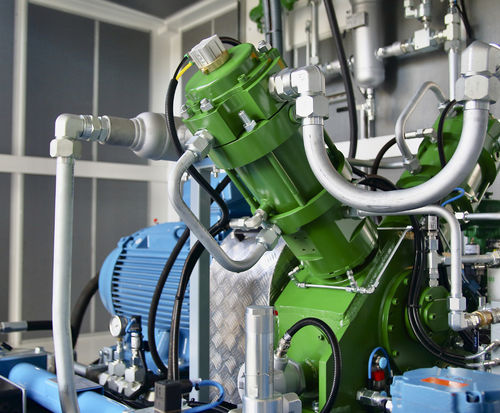

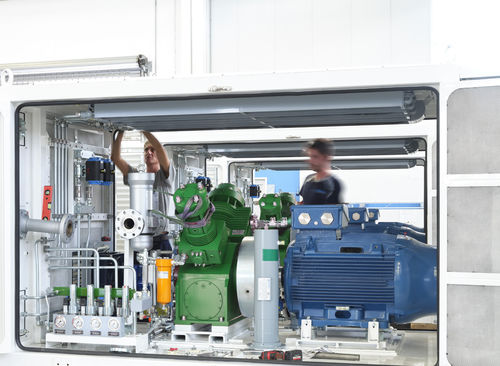

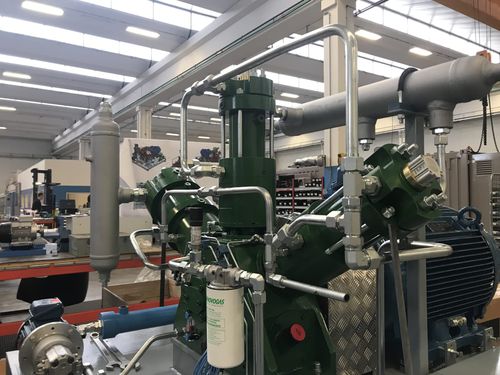

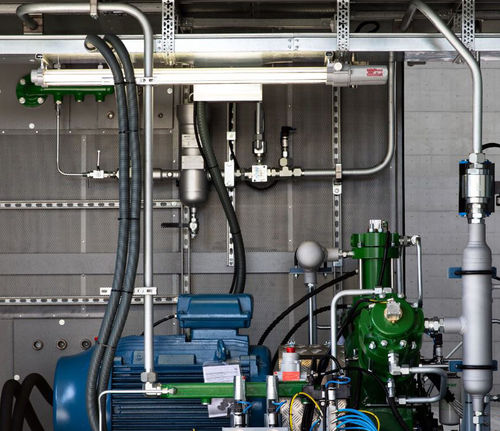

The SA200 compressor can be fitted either inside GASVECTOR modules or in equipment rooms, and can be connected to an electric motor or a gas engine with powers up to 55 kW and flow rates in excess of 900 Sm3/h.
MAIN FEATURES
Power output up to 55kW
Maximum speed: 1500 rpm
Wide range of cylinders and bores available
Water or Air-cooling capabilities on all cylinders

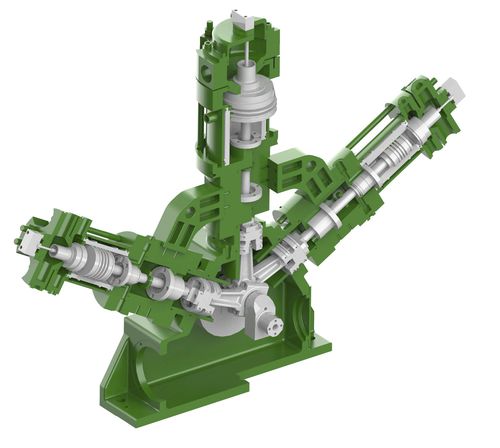

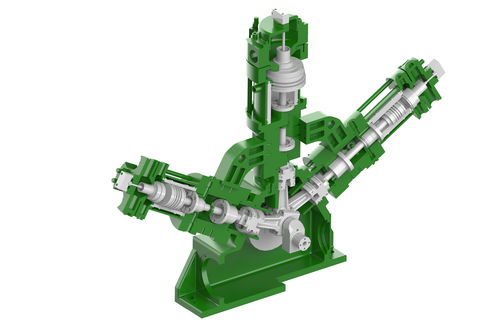

2 or 3 cylinders configuration
Wide range of piston-sleeve modules available
New adjustment system for the direct motor-compressor coupling
Innovative pistons and seals compared to industry standards
Minimal vibration thanks to a perfectly balanced compressor
OIL FREE configuration
توضیحات:
Technology
reciprocating
Type
for CNG, biogas, for process gas
Power source
with combustion engine
Portability
stationary, mobile
Lubrication
oil-free
Application domain
industrial, for the petrochemical industry
Applications
process, discharge, for the gas industry, for PET plastic bottle manufacturing, for gas stations, for machines, for gas
Other characteristics
compact, low-noise, high-efficiency, direct-drive, rugged, air-cooled, water-cooled, skid-mounted, belt-driven
Pressure
Min.: 0 bar(0 psi)Max.: 100 bar(1,450.38 psi)
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 900 m³/h(31,783.2 ft³/h)
Power
Min.: 0 kW(0 hp)Max.: 55 kW(74.78 hp)
