نام محصول:
پمپ فاضلاب
نام انگلیسی:
Wastewater pump Drain TS series
برند:
Wilo
مشخصات:
User-friendly – lightweight, ready-to-plug version (Plug&Pump)
Perfect for mobile applications – features a robust, impact-resistant stainless steel housing
Reliable operation – stainless steel-encapsulated motor with sheath flow cooling, mechanical seal and sealing chamber
Design
Submersible pump for stationary and portable wet well installation. Pump with fitted float switch for fully automatic operation.
Liquids
For the pumping in domestic areas of:
Sewage not containing faeces
Wastewater (with small amounts of sand and gravel)
Equipment/function
Self-switching thermal motor monitoring
Integrated capacitor
Fitted float switch
Construction

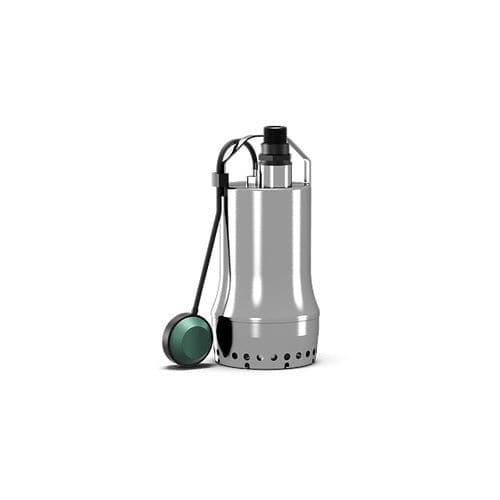

Drain TS
Sewage pump with open multi-channel impeller and vertical threaded connection. Pump housing with strainer made of stainless steel, impeller made of composite material. 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Connection cable with float switch and fitted plug (CEE 7/7).
Drain TSW
Sewage pump with integrated turbulator (twister function), open multi-channel impeller and vertical threaded connection. Pump housing with strainer made of stainless steel, impeller made of composite material. 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing.
توضیحات:
Fluid
for wastewater, for clear water
Priming
submersible
Technology
centrifugal
Mobility
stationary
Domain
industrial, for wastewater treatment
Applications
cooling, cooling, drain, lift
Material
stainless steel, composite
Voltage
230 V
Protection level
robust, IP68
Other characteristics
mechanical, small, double, close-coupled, rotary, mobile, portable, multi-channel, seal, integrated
Flow
57 m³/h(2,012.936 ft³/h)
Pressure
2 bar(29.008 psi)
Head
Max.: 12 m(39’04” )Min.: 0 m(0’00” )
Power
0.3 kW, 0.6 kW(0.41 hp, 0.82 hp)
Fluid temperature
Max.: 90 °C(194 °F)Min.: 3 °C(37.4 °F)
Length
161 mm, 171 mm, 240 mm(6 in, 7 in, 9 in)
Width
161 mm, 171 mm, 220 mm(6.34 in, 6.73 in, 8.66 in)
Height
320 mm, 340 mm, 360 mm, 445 mm(12.6 in, 13.39 in, 14.17 in, 17.52 in)
Weight
7 kg, 7.8 kg(15.43 lb, 17.2 lb)
