نام محصول:
پمپ فاضلاب
نام انگلیسی:
Wastewater pump 400/M series
برند:
Watson-Marlow Fluid Technology Group
مشخصات:

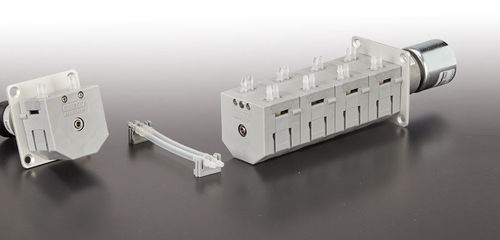

This simple pump uses tube elements and Luer connectors for easy fitting and replacement, particularly when mounted inside instruments. Tubing is fully enclosed in the housing. Supported by ball bearings, the pump shaft ensures long motor life. It is available as pumpheads only, or with four standard, compact DC motors as well as with stepper motors.
400/M single-channel pump
One channel per pumphead, and up to four pumpheads can be ganged together on the same motor. A maximum of four channels offers great flexibility for multichannel applications.

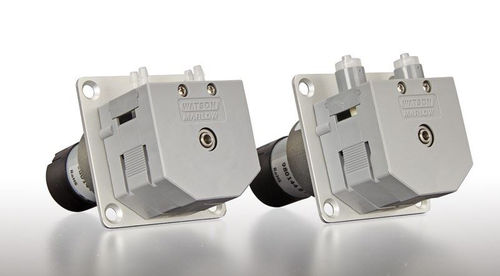

400/N two-channel pump
Two channels per pumphead, and up to four pumpheads can be ganged together on the same motor, offering eight channels in total.
Features and benefits
From one to eight channels in a compact design
400/M works with 1.6 mm wall thickness tubing and Luer connectors
400/N works with 1.0 mm wall thickness tubing and barbed fittings
Complete pump with motor, or as pumphead only
Pumphead available in PVDF for greater chemical compatibility
توضیحات:
Fluid
for wastewater, for chemicals, for food products
Operation
with DC motor
Technology
gear
Mobility
stationary, mobile
Domain
chemical, for the food and beverage industry, for the mining industry
Applications
transfer, replacement
Material
PVDF
Voltage
24 V, 230 V, 110 V
Other characteristics
compact, standard, small, OEM, easy tube loading, wall
Flow
Max.: 0.082 l/min(0.02166 us gal/min)Min.: 0 l/min(0 us gal/min)
Pressure
2 bar(29.008 psi)
Power
2 W, 5 W(0 hp, 6.8 hp)
Fluid temperature
Max.: 45 °C(113 °F)Min.: -10 °C(14 °F)
