نام محصول:
پمپ فاضلاب
نام انگلیسی:
Wastewater pump PCM EcoMoineau™ MX
برند:
PCM
مشخصات:

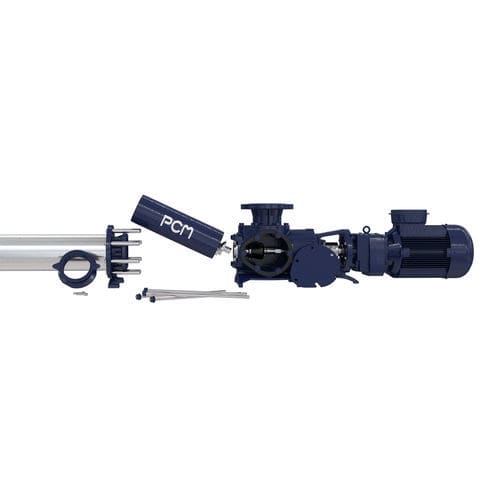

The PCM EcoMoineau™ MX pump comes with an integrated maintenance in place system as a standard feature. It is specifically designed to provide easy and rapid maintenance. Thanks to its maintenance in place system, maintenance operations can be carried out on-site without the need to remove the pump from its installation. This significantly reduces downtime and optimizes the productivity of industrial operations.
The PCM EcoMoineau™ MX pump is the ideal choice for industries seeking a high-performing, robust, and user-friendly pumping solution. With its integrated maintenance in place system as a standard feature, it enables productivity optimization.
The EcoMoineau™ MX is available in different versions:
Integrated, monobloc or bearing mounting
Multistandard flanges or hopper in suction side
Characteristics
Different rotor and stator materials available
Multi-standard flanges
Enlarged inspection doors
Revolutionary articulation
Maintenance system in place as standard
ATEX Certification in option
توضیحات:
Fluid
for wastewater, for industrial water, for hot water, for cooling water, for ink, polymer, slurry, oil, for biogas
Operation
electric
Priming
self-priming
Technology
progressive cavity
Mobility
stationary
Domain
for the chemical industry, industrial, for wastewater treatment, for agricultural applications, mining and quarrying, for the metallurgical industry, for the paper industry, for the printing industry, for the automotive industry, for machine tools, for methanizers
Applications
process, transfer, conveying, extraction, for pumping stations, discharge, for high-pressure applications, high-pressure, chemical process, firefighting, metering, circulation, sewage, for industrial applications, transport, injection, treatment, feed, filling, for lubrication, extra-high-pressure
Material
stainless steel, cast iron, EPDM
Fluid specification
for abrasive fluids, for solids-laden fluids, for corrosive fluids, for viscous fluids, for used oil
Protection level
chemical-resistant, abrasion-resistant, standard, explosion-proof, corrosion-resistant, rugged, ATEX, robust
Other characteristics
suction, compact, floating, standard, with mechanical seals, with flange, adjustable, modular, close-coupled, high-flow, rugged, integrated, corrosion-proof
Flow
Max.: 235.7 m³/h(8,323.66695 ft³/h)Min.: 4.9 m³/h(173.04187 ft³/h)
Pressure
Max.: 24 bar(348.091 psi)Min.: 4 bar(58.015 psi)
Power
Max.: 45 kW(61.18 hp)Min.: 2.2 kW(2.99 hp)
Fluid temperature
Max.: 40 °C(104 °F)Min.: 0 °C(32 °F)
