نام محصول:
پمپ فاضلاب
نام انگلیسی:
Wastewater pump YB-85
برند:
Fujian Nanxing Environmental Technology Co.,Ltd
مشخصات:

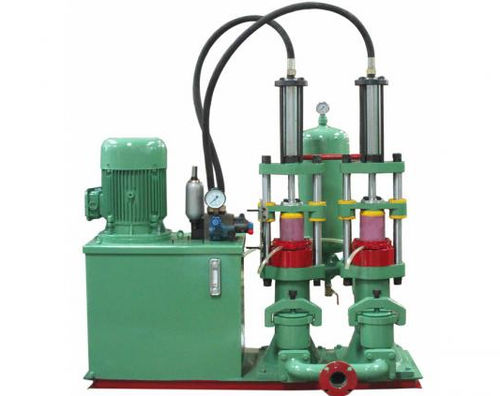

YB-85 ceramic piston pump is often used for pumping thick slurry, especially for stone wastewater, kaolin slurry, ceramic wastewater and mining thick slurry.
This slurry pumping transfer machine also could be called hydraulic piston pump.
There are 6 types, YB-85,120,140, 200, 250, 300. It could also be designed to variable frequency and variable flow types, which could help user to save electricity.
Characteristic:
1. – Hydraulic driven, two ceramic piston working up and down.
2. – The highest working pressure could be 2.0mpa, normal working pressure is 1.5mpa
3. – Pistons are made of alumina ceramics, of great abrasion résistance and corrosion résistance.
4. – Variable piston pump is adopting variable oil pump, flow could be variable, which will save more electricity compared to normal ceramic piston pump.
5. – Variable frequency pump adopts frequency conversion technology, match a variable frequency electric cabinet for saving more electricity, compared to variable flow ceramic piston pump and normal ceramic piston pump.
توضیحات:
Fluid
wastewater, slurry
Operation
hydraulic piston
Technology
piston
Mobility
stationary
Domain
industrial, for the mining industry
Applications
transfer
Material
ceramic
Flow
3 m³/h(105.944 ft³/h)
Pressure
Max.: 20 bar(290.075 psi)Min.: 0 bar(0 psi)
Power
4 kW(5.44 hp)
Length
1,230 mm(48 in)
Width
850 mm(33.46 in)
Height
1,600 mm(62.99 in)
Weight
550 kg(1,212.54 lb)
