نام محصول:
پمپ سیال کم ویسکوزیته B2 باتری PP

نام انگلیسی:
Low-viscosity fluid pump B2 Battery PP

برند:
Lutz Pumpen GmbH

مشخصات:
Fluid
acid

Operation
with brushless DC motor

Priming
semi-submersible

Technology
impeller

Mobility
stationary

Domain
industrial, laboratory

Applications
transfer, drum, drain, filling

Material
polypropylene

Fluid specification
for low-viscosity fluids

Other characteristics
radial, battery-powered

Flow
Min.: 0 l/min
(0 us gal/min)

Max.: 22 l/min
(5.81179 us gal/min)

Head
Min.: 0 m
(0’00” )

Max.: 12 m
(39’04” )

Power
260 W
(0.35 hp)

Fluid temperature
50 °C
(122 °F)

Input diameter
32 mm
(1.26 in)

توضیحات:

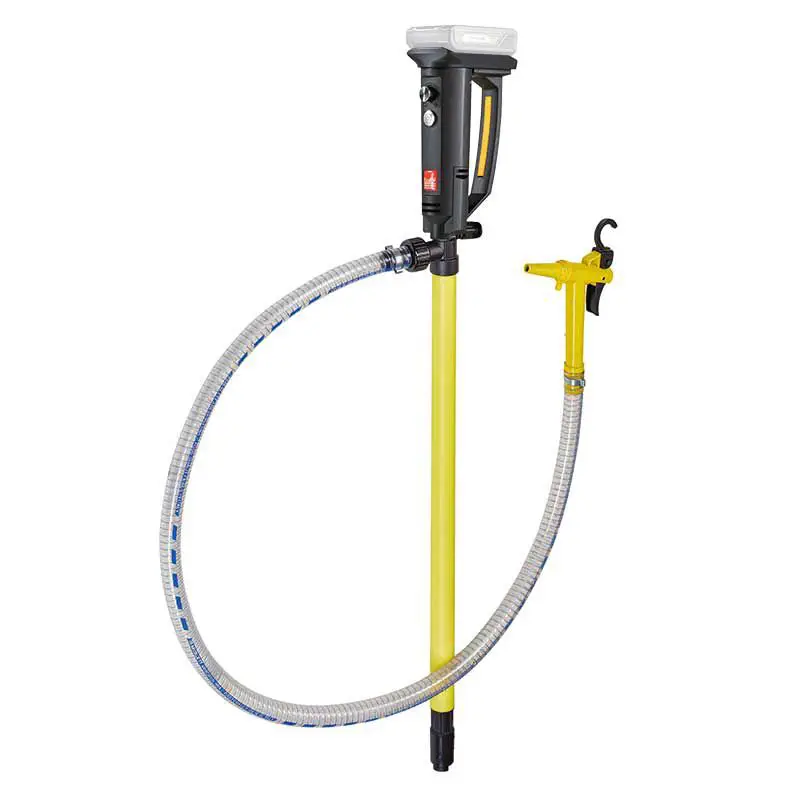

The Pump Set B2 Battery is suitable for thin-bodied, aqueous to slightly viscous media. The set is suitable for removing small containers such as Canister or hobbocks. The pump is flexible at all times and thus saves important resources. The set is supplied without battery and charger

• Replaceable, powerful battery with Li-Ion
• Battery life approx. 35 min at maximum speed
• 1 battery charge emptied approx. 12 x 200 litre container

Features & Advantages

• BLDC Motor with high efficiency of up to 70
• continuously adjustable
• long battery life
• automatic shutdown on overload
• sophisticated quick lock

* The maximum flow rate is a value determined by means of a test bench and measured with water at a liquid temperature of approx. 20 °C . The measurement is taken at the pressure joint of the pump, without hose, nozzle or flow meter.‌The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump.The max. delivery head also depends on the pump design, motor and fluid.‌The viscosity values are determined with oil.
