نام محصول:
پمپ دو دیافراگم
نام انگلیسی:
Double-diaphragm pump UP03 3/8″
برند:
SAMOA Industrial, S.A.
مشخصات:

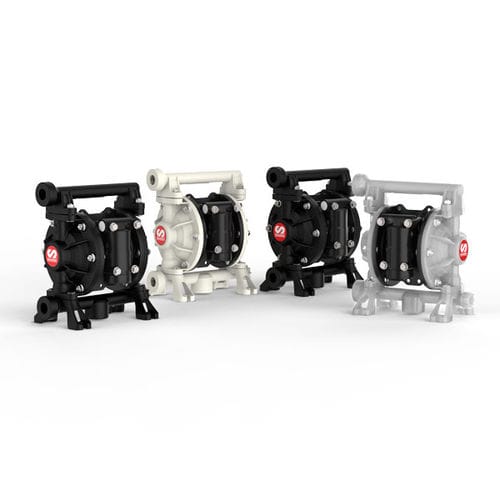

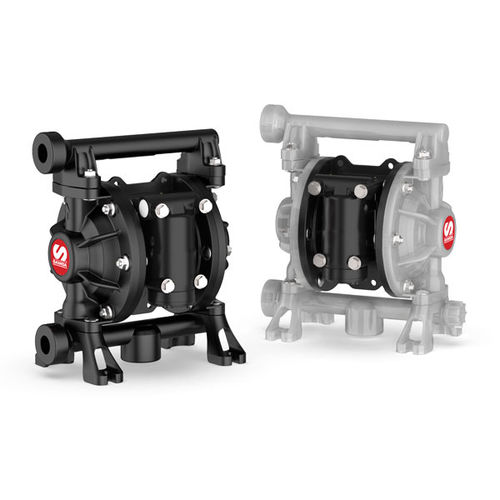

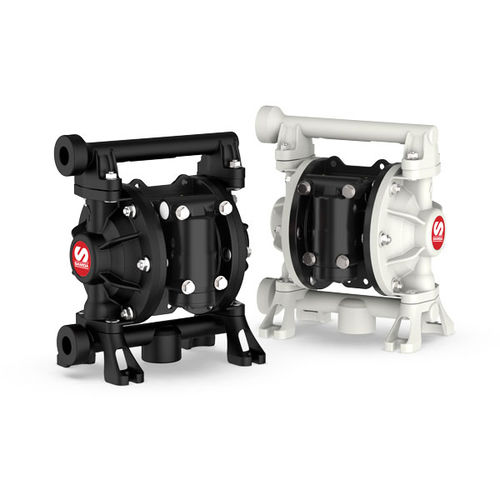

PIVOT Series 3/8” Air-operated double diaphragm (AODD) pumps are available in non-metallic materials, such as Polypropylene, Conductive Polypropylene, Conductive Acetal and PVDF, with an extensive range of diaphragms, seats and balls. They offer a wide range of applications and fluid compatibility.
These pumps are very suitable for aggressive chemicals with the presence of abrasives.
UP03 3/8” AODD pumps make the difference through:

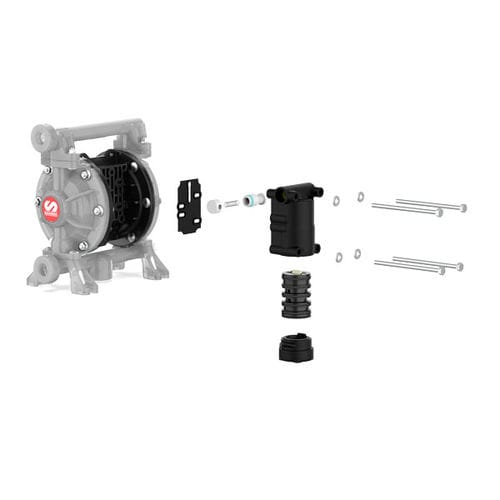

• Exclusive Frictionless PIVOT-SHAFT Air Valve that results in:
o Bigger flow delivery.
o Smooth operation.
o Reduced flow pulsations.
o No pump vibration.
o Low-pressure start up.
o No icing.
o Easy and fast service.
• Lateral fluid inlet and outlet ports avoid leaking directly onto the pump.
• Universal standards:
o Matches relative dimensions of main competitive brands, allowing easy swap-over.
o Allow for easy swapping and upgrading of your old pumps.
• Optimized design for maximum performance.
• Premium materials for a long and reliable life
ATEX certified versions available
Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.
توضیحات:
Fluid
water, for chemicals, slurry, for lubricants, for powders
Operation
air-driven
Priming
self-priming, submersible
Technology
double-diaphragm
Mobility
stationary
Domain
industrial, for maritime applications, for the glass industry, for public works, for the steel industry, for foundry applications
Applications
drain, transfer, process, circulation, distribution, sewage, filling, suction, recycling, for lubrication systems, for spraying, recovery, level control, for printing machines, sanitation, refueling, for harsh environments, cleaning, dewatering, drainage, lubrication, surface treatment, recirculation, for hazardous locations, chemical process, unloading, for low-pressure applications, high-volume, IBC
Material
PP, PVDF
Fluid specification
for corrosive fluids, for aggressive media, for fluids with lubricating properties, flavouring, for abrasive fluids, dye, for brine, for paper stock, for toxic fluids, for solids-laden fluids, for low-viscosity fluids, cutting fluid, for mineral oil, for engine oil, for AdBlue, for flammable fluids, for used oil, pressure powered, for firefighting foam, for refrigerant fluids, coagulant
Protection level
abrasion-resistant, submersible, ATEX, robust
Other characteristics
flange, compact, mobile, high-efficiency, horizontal mount, high-reliability, high-capacity, seal-less, low-vibration, small, skid-mounted, oil-free, heavy-duty, high-performance, low-noise, OEM, rugged, double-acting, for fluids, high-flow, corrosion-proof, adjustable-flow, rugged
Flow
31 l/min(8.18933 us gal/min)
Pressure
Max.: 7 bar(101.526 psi)Min.: 1.5 bar(21.756 psi)
Head
Max.: 7 m(22’11” )Min.: 3 m(9’10” )
Input diameter
0.4 in
Output diameter
0.4 in
Length
151 mm(6 in)
Width
202 mm(7.95 in)
Height
237 mm(9.33 in)
Weight
1.8 kg, 2 kg, 2.1 kg, 2.3 kg(3.97 lb, 4.41 lb, 4.63 lb, 5.07 lb)
