نام محصول:
پمپ اب
نام انگلیسی:

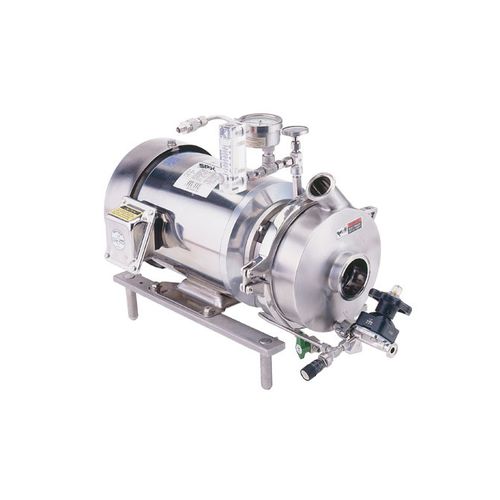

Water pump WFI 200 series
برند:
Waukesha Cherry-Burrell
مشخصات:
Pumps / Centrifugal Pumps
Adapted from rugged, precision 200 Series design for pumping water for injection; modifications to seal area prevent leakage of contaminants into pumpage.
Features
Although designed for high purity, pyrogen-free fluid used in pharmaceutical products, this pump is ideal for pumping high purity, deionized water, such as that used to rinse and cleanse electronic integrated circuits.
All wetted parts 316L stainless steel with 32 Ra (150 grit) finish; 20 Ra (240 grit) and electropolish optional
Single and double seal options: John Crane Type 9, Chesterton 241, silicon carbide, tungsten carbide, FKM, EPDM
Optional factory-installed flush system with pressure, temperature, flow-rate controls
Casing drain options
3-A and EHEDG certified
توضیحات:
Fluid
water
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
drain, control
Material
stainless steel
Other characteristics
double, rugged, electronic, seal, integrated, flush
Flow
Max.: 318 m³/h(11,230.06402 ft³/h)Min.: 22 m³/h(776.92267 ft³/h)
Head
Max.: 104 m(341’02” )Min.: 6 m(19’08” )
