نام محصول:
پمپ اب
نام انگلیسی:
Water pump KTZE series
برند:
TSURUMI MANUFACTURING CO., LTD.
مشخصات:

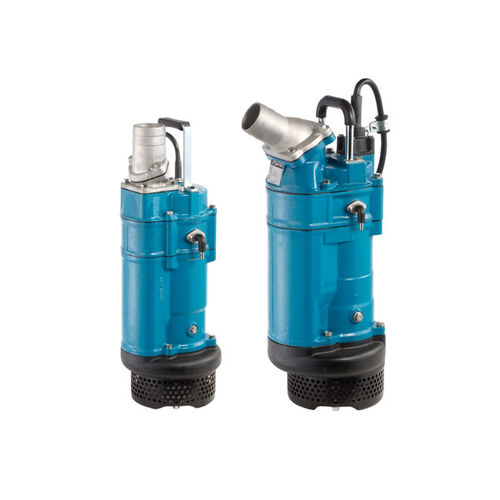

The KTZE-series is a submersible three-phase automatic cast iron high head heavy-duty drainage pump. An innovative electrode type relay unit built into the pump automatically starts and stops the pump to eliminate dry-running. This mechanism greatly reduces power consumption and extends operating life. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air. The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
REGISTRATION OF DESIGN
Tsurumi KTZ-series has been registered of the design around the world (including the EU, the U.S. and China).
The right on the design shall be granted under the law of each country.
توضیحات:
Fluid
water
Operation
electric
Priming
submersible
Technology
centrifugal
Mobility
stationary
Domain
mining and quarrying
Applications
discharge, cooling, drainage, dewatering
Material
cast iron
Other characteristics
heavy-duty, automatic
Flow
Min.: 0 m³/min(0 ft³/min)Max.: 1.5 m³/min(52.972 ft³/min)
Head
Min.: 0 m(0’00” )Max.: 40 m(131’02” )
Power
Min.: 1.5 kW(2.04 hp)Max.: 3.7 kW(5.03 hp)
