نام محصول:
پمپ اب
نام انگلیسی:
Water pump CTV 25-11
برند:
Tapflo
مشخصات:
CTV 25-11 PLASTIC

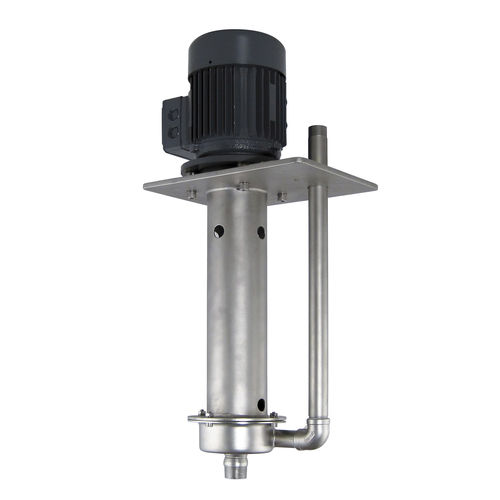

CTV 25-11 is a 1″ vertical pump in PP or PVDF with 1.1 kW motor, capacity of 15.6 m3/h and max head of 16 m.
Performance curve
The performance curves are based on water at 20°C. Other circumstances might change the performance.
توضیحات:
Fluid
water, for chemicals
Operation
with electric motor
Priming
semi-submersible
Technology
centrifugal
Domain
industrial
Applications
circulation, for transfer, chemical process
Material
PVDF, stainless steel, PP, plastic
Other characteristics
single-stage, suction, dry, vertical, seal
Flow
Max.: 15.6 m³/h(550.9088 ft³/h)Min.: 0 m³/h(0 ft³/h)
Head
Max.: 16 m(52’05” )Min.: 0 m(0’00” )
Power
1.1 kW(1.5 hp)
