نام محصول:
موتور هوا
نام انگلیسی:

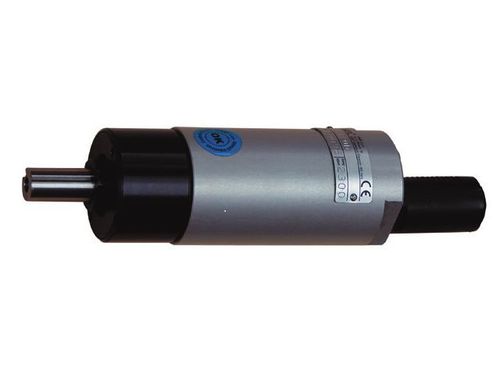

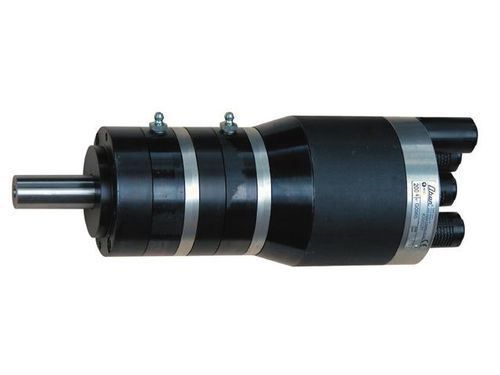

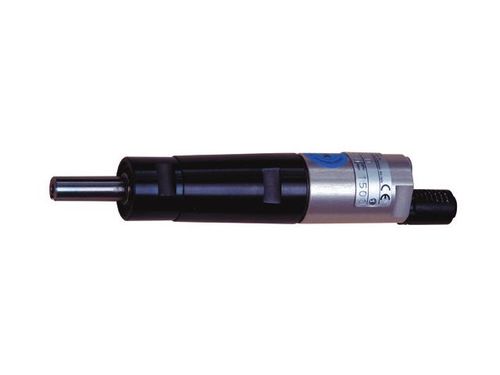

Vane air motor SERIE LFB
برند:
SENGA
مشخصات:
SENGA air motors are available in different versions:
standard version, used with compressed air
LUB version for self-lubricating pallets
TOF version with non-lubricated air
ATEX version for use in explosive environments
These air motors operate at a nominal pressure of 6 bar. Lower values lead to a reduction in performance, while higher values have almost no influence on the technical data, but may limit the service life of the motor.
A data sheet for this product is attached. On the data sheet, a table shows the variation in performance for different supply pressure values.
STANDARD: For use with lubricated air
LUB: With self-lubricating vanes (code + extension .6) The air is lubricated, but a seal prevents the oil from passing to the front of the motor to avoid splashing on the work station.
TOF: Total Oil Free. Use with non-lubricated air, presence of self-lubricated and sealed bearings (code + extension .8)
ATEX: For use in explosive environments (certified categories II2G and IIBT4) (code + extension .EX)
SPEED: between 70 rpm and 28,000 rpm – no load
CONSUMPTION: from 400 NL/min to 1300 NL/min – depending on model WEIGHT: between 1.80 kg and 2.10 kg
Industry
Industrial pneumatics
Compressed air
توضیحات:
Technology.
vane
Applications
for atmospheres containing explosive dust, for agitators
Other characteristics
ATEX, compact, high-torque, reversible
Torque
Min.: 0 Nm(0 ft.lb)Max.: 103 Nm(75.97 ft.lb)
Rotational speed
Min.: 70 rpm(439.82 rad.min-1)Max.: 28,000 rpm(175,929.19 rad.min-1)
Power
Min.: 110 WMax.: 1,340 W
