نام محصول:
موتور هوا دنده سیاره ای
نام انگلیسی:

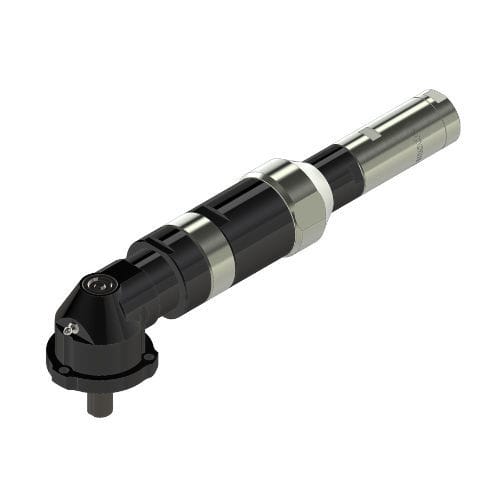

Planetary gear air motor MRH 05 series
برند:
MODEC
مشخصات:
“05” series air motors are the lightest and most compact.
With a 300W power in a 113 x 36,5 mm cylinder weighting half a kilogram only, these motors fit easily in a machine.
Like any of our motors, power and torque are easily controlable by simply adjusting air supply pressure, which allows to use them “at stall” without any additional precaution.
This makes them an ideal tool for cap screwing on bottling lines for example.
توضیحات:
Technology.
rotary vane, planetary gear
Other characteristics
ATEX, compact, flange
Torque
Min.: 20 Nm(14.75 ft.lb)Max.: 137 Nm(101.05 ft.lb)
Rotational speed
Min.: 31 rpm(194.78 rad.min-1)Max.: 193 rpm(1,212.65 rad.min-1)
Power
177 W, 217 W, 271 W(0.24 hp, 0.3 hp, 0.37 hp)Min.: 174 W(0.24 hp)Max.: 271 W(0.37 hp)
