نام محصول:
مفصل چرخشی هوای فشرده
نام انگلیسی:
Compressed air rotary joint MQR Series
برند:
Ningbo VPC Pneumatic Co., Ltd.
مشخصات:

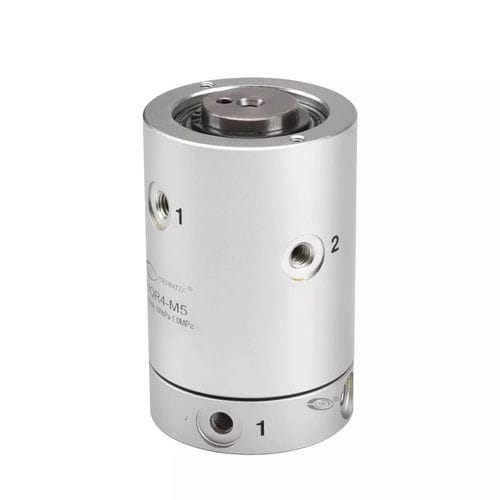

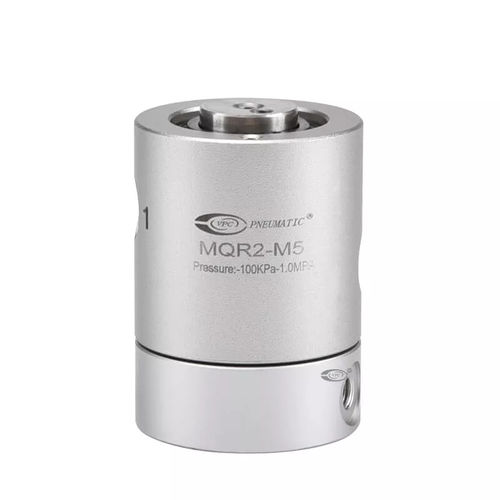

The low torque, metal seal, rotary joint series MQR makes it possible to supply air to rotating and sliding components. Rotational torque is unaffected by supply pressure and temperature fluctuations. The use of metal seals prevents the spool from sticking to the rotating surface even after a long period of non- operation. Piping ports are aligned in a spiral line for easy piping.
Product Feature
1. Rotational torque unaffected by supply pressure and temperature fluctuations.
2. Use of metal seals prevents the spool from sticking to the rotating surface even after a long period of non-operation.
3. Operating pressure: -100 kPa to 1 MPa
4. Piping ports are aligned in a spiral line for easy piping.
توضیحات:
Medium
for compressed air, for vacuum
Number of passages
multi-passage
Material
aluminium
Other characteristics
with seal, low-torque
Rotational speed
Max.: 3,000 rpm(18,849.56 rad.min-1)Min.: 200 rpm(1,256.64 rad.min-1)
Pressure
Max.: 1 MPaMin.: 0 MPa
