نام محصول:
فیلتر آب
نام انگلیسی:
Water filter ROCK-PHIN (C-ROPH)
برند:
ROCK-PHIN (C-ROPH)
مشخصات:

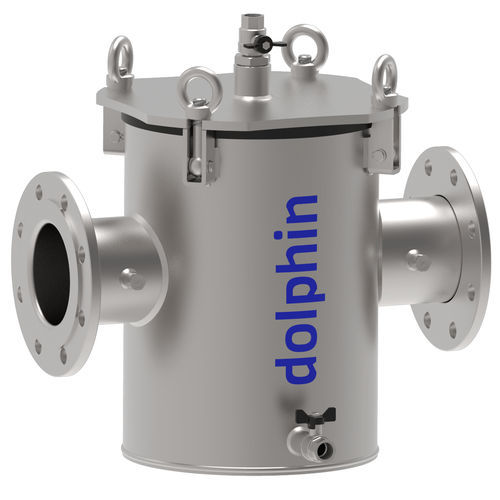

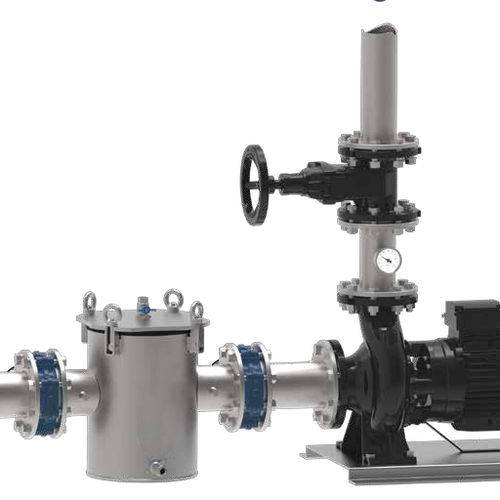

rock-phin is a stainless steel static filter that comes with a durable perforated metal sheet basket. It is specifically designed to safeguard pumps and can be used as a rough filter for water treatment processes that involve water from wells, rivers, or canals that contain large suspended solids.
This filter has a unique “QUICK BOLTS” system that ensures faster maintenance and disassembly times, enabling users to remove the cover without unscrewing the tightening bolts
entirely. Additionally, the filter includes an anti-cut stop that extends the life of the sealing gaskets. ROCK-PHIN filters are supplied with drain/vent valves and are designed to support
pressure gauges.
توضیحات:
Designed for
water, for wastewater, for rainwater, for liquid food products and beverages
Filtration element
basket
Filtration method
pressure
Applications
process, industrial, suction, for pump, irrigation, sludge, for pipes, for vacuum pumps, separation, coarse pre-filtration, for HVAC, for storage tanks, for cooling towers, for heating systems, for pipelines, intake, for HVAC installations
Material
stainless steel
Mounting
flange
Cleaning
easy cleaning, washable
Fluid specification
process water, sewage treatment
Other characteristics
in-line, custom, T type
Operating pressure
Max.: 10 Pa(0.001 psi)Min.: 0 Pa(0 psi)
Filtration size
Max.: 3,000 µmMin.: 1,000 µm
Flow
Max.: 1,000 m³/s(35,314.667 ft³/s)Min.: 0 m³/s(0 ft³/s)
Fluid temperature
Max.: 100 °C(212 °F)Min.: 0 °C(32 °F)
