نام محصول:
شیر دیافراگم
نام انگلیسی:

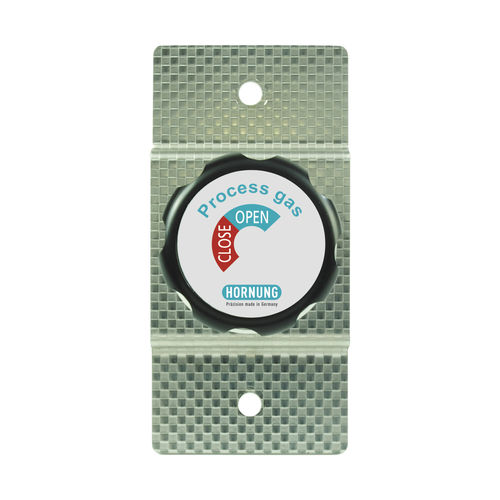

Diaphragm valve HP 551
برند:
Hornung GmbH
مشخصات:
The diaphragm shut-off valve HP 551 is laid out for the use in pure gas supply systems.
The diaphragm shut-off valve has an inlet and an outlet.
Threaded holes on the reverse side connect to a bracket that can be directly mounted on a laboratory wall.
Diaphragm shut-off vales are system components used in low and high pressure pure gas supply.
توضیحات:
Type
diaphragm
Operation
with handwheel
Function
shut-off
Media
for gas
Body
threaded, stainless steel, chrome-plated brass
Applications
laboratory
Other characteristics
high-pressure, low-pressure
DN
4 mm(0.157 in)
Pressure
Max.: 300 bar(4,351.1 psi)Min.: 0 bar(0 psi)
Temperature
Max.: 70 °C(158 °F)Min.: -20 °C(-4 °F)
