نام محصول:
سوئیچ اهرم
نام انگلیسی:

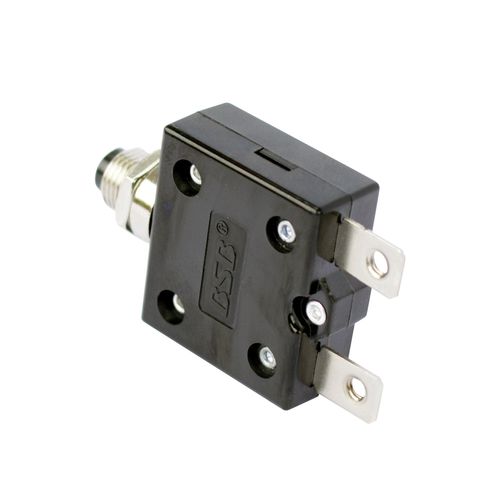

Lever switch BC5 series
برند:
ZHEJIANG BSB ELECTRICAL APPLIANCES CO.,LTD
مشخصات:
Switch
BC5 Series Supplementary Protector can be used in electric system which rated current from 3A to 50A, 50/60Hz, voltage AC 250V and DC65V to protect the overload and short of circuit. It is largely used in industrial automation equipment, telecommunication equipment, communication power , UPS and so on.
Basic Parameters
Maximum voltage：125/250VAC 50/60 Hz，32/65VDC
Current Ratings：3A-50A
Insulation resistance：Minimum of 100 Megohms at 500VDC
Dielectric strength：1500V, 50/60Hz for one minute between all terminals
توضیحات:
Type
lever
Number of poles
single-pole
Other characteristics
panel-mount
Primary current
Max.: 50 AMin.: 3 A
Voltage
Max.: 250 V
