نام محصول:
روان کننده هوای فشرده
نام انگلیسی:

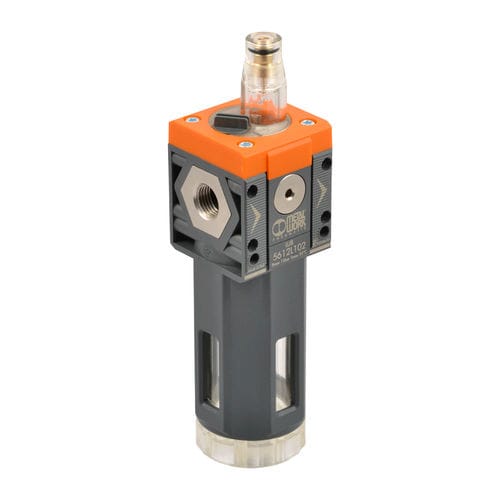

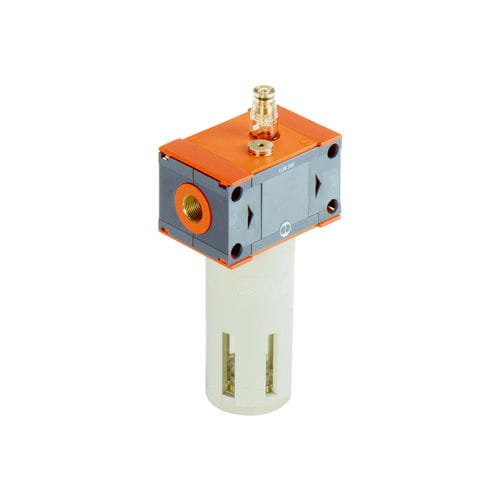

Compressed air lubricator LUB series
برند:
LUB series
مشخصات:
The pneumatic lubricator is the simplest way of properly lubricating actuators connected to a circuit. As air flows from the mains through the lubricator, it encounters the diaphragm which obstruct the flow and the air is forced through the Venturi tube. The inside of the Venturi tube is connected to the inspection dome, which connects with the bowl via a tube with a regulating needle in between. The drop in pressure caused by the Venturi tube sucks up air through the dome, the tube and lastly into the bowl containing oil.The quantity of oil controlled by the regulating needle then flows back from the bowl to the circuit.
Quantity per package:0
Minimum order quantity:0
Unit of measure:items
Max temperature (°C)50
Min temperature (°C)-10
Threaded port1/4″
توضیحات:
دیدگاهها
هیچ دیدگاهی برای این محصول نوشته نشده است.
