نام محصول:
دریچه
نام انگلیسی:

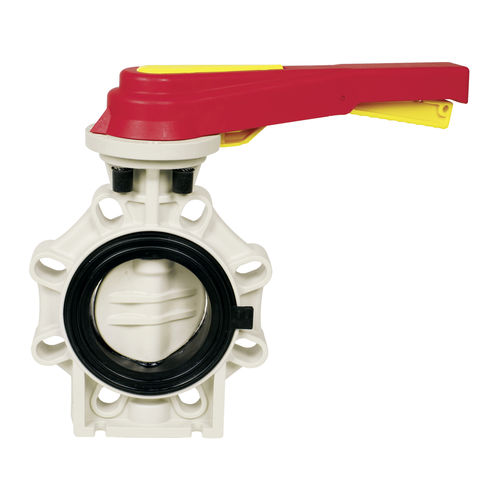

Butterfly valve K4
برند:
Praher Plastics Austria GmbH
مشخصات:
Safety handle with PLS – Praher Labeling System
Ten different locking positions
Double sealed shaft
Encapsulated wetted parts
Integrated brackets for fix point mounting
Simple upgrade to automatic actuation – ISO 5211 flange type (F07, F10)
Mounting between DIN, ANSI, JIS flanges
Approvals – Declaration of Conformity acc. to Annex VII of the Directive 97/23/EG, EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission, TÜV Certificate
توضیحات:
Type
butterfly
Operation
lever
Media
for liquid food products and beverages
Body$
flange, lug type
Applications
hygienic
Material$
PVDF
Other characteristics
ISO, DIN, ANSI, locking
DN
Min.: 65 mm(2.559 in)Max.: 200 mm(7.874 in)
Pressure
10 bar(145 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 120 °C(248 °F)
Flow rate
Min.: 73 l/min(19.28 us gal/min)Max.: 38,000 l/min(10,038.54 us gal/min)
