نام محصول:
دریچه
نام انگلیسی:

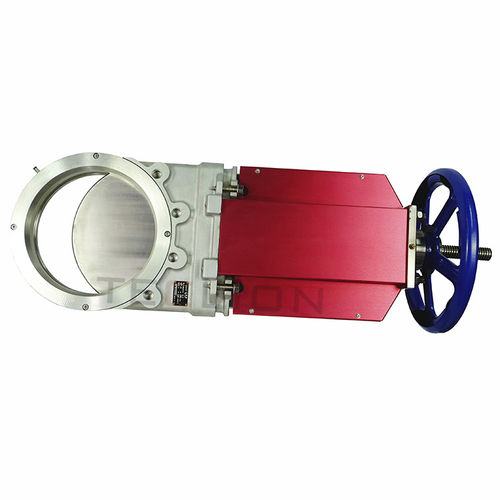

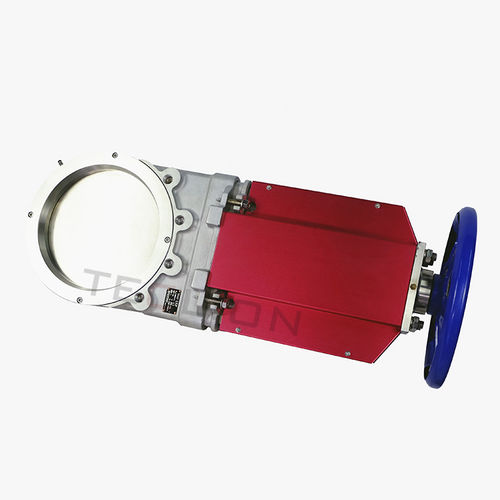

Gate valve GWL-GWH-1
برند:
HEFEI TECLION MACHINERY INDUSTRY CO. LTD.
مشخصات:
Seal in the drop through opening,packing sealed to the outside
Low construction height
Flange drillings available to PN1O,ANSI l5Olbs
Manual (handwheels chainwheels.bevelgeras)or pneumatic version available
InstallatIon posthon up to 30 to the horizontal
The integral metal seated version is available with shut off capability exceeding current MASS-SP81 standards.
توضیحات:
Type
gate
Operation
manual, pneumatic
Body
stainless steel, carbon steel, metal
Applications
flange, for powders, for granulates
Other characteristics
ANSI
Pressure
1.5 bar, 3.5 bar(21.8 psi, 50.8 psi)
Temperature
Max.: 120 °C(248 °F)Min.: -20 °C(-4 °F)
