نام محصول:
دریچه
نام انگلیسی:

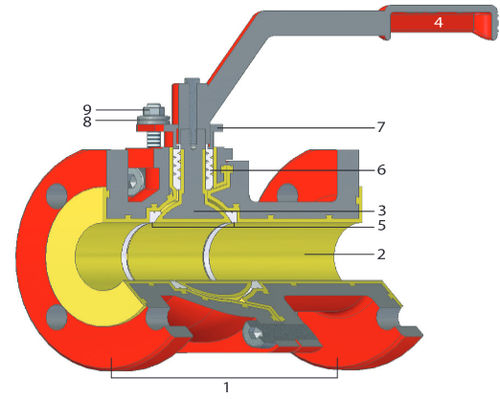

Ball valve SPHERON9®
برند:
GFT German Fluorolined Technik GmbH
مشخصات:
One piece ball/stem full bore system for superior performance
Lining options for abrasive applications PVDF and UHMW-PE
Maintenance-free and adjustable gas-tight stuffing box packing
Face to face dimensions – DIN EN 558-1
Actuator connection – DIN 3337 – ISO 5211
Body material – A216WCB or CF-8M
Ball Seat Rings – One-piece ball stem, ceramic ball, PVDF or UMHW-PE ball
Lining options – PFA, PFA/UP, PFA/AS, PVDF, PP; UHMW-PE
Options – 5mm lining, monitoring and flushing connection, limit switch, stem extension, heating jacket, control ball
توضیحات:
Type
ball
Operation
lever
Function
for control, shut-off
Media
for wastewater, for chemical products, for gas
Body
flange, 1-piece, PFA-lined
Applications
for the chemical industry, process, for the pharmaceutical industry, for the petroleum industry, for water treatment, for the paper industry, for the mining industry, for the semiconductor industry, power line
Fluid specification
for abrasive fluids
Other characteristics
ISO, DIN, full-flow, corrosion-resistant, locking, anti-static, heavy-duty
DN
Min.: 15 mm(0.591 in)Max.: 200 mm(7.874 in)
Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: -60 °C(-76 °F)Max.: 200 °C(392 °F)
