نام محصول:
دریچه لغزنده
نام انگلیسی:
Slide valve Vortex® Aero-Slide™
برند:
Vortex Global
مشخصات:

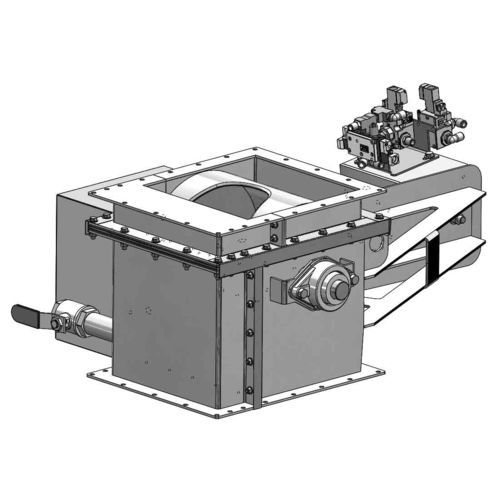

The Vortex® Aero-Slide™ Drum Valve is a self-contained unit that prevents material packing, dusting to atmosphere and other valve failures.
Ideal application: The Aero-Slide Drum Valve is specifically designed to be used in tandem with the Vortex® Aero-Slide™ Conveyor. Unlike the Vortex® Aero-Slide™ Gate Valve, which is primarily intended for material shut-off, the Aero-Slide Drum Valve is well-designed for metering material flow. The Aero-Slide Drum Valve features a rotating, cylindrical-shaped blade with a V-notched bore. This provides for more precise metering control.
Conveyance Type
Low pressure, air-gravity conveyance only
Materials Handled
Lightweight, fluidizable dry bulk solid powders
Standard Sizes
6 – 16 in | 150 – 400 mm (even sizes standard)
Opening
Available in square or rectangular sizes
Material Temperatures
180°F | 80°C for standard valve
Body/Frame Options
Carbon steel
Material Contact Options
Carbon steel
Seal Construction
Rubber, felt, and stainless steel (layered seal)
Drive/Actuation
Double-acting air cylinder and linear action electric actuator
Position Confirmation
Magnetic reed and proximity
Material Flow Controls
AVP, IVP, VPO, VPC
توضیحات:
Type
slide
Function
shut-off
Applications
for bulk materials, drum
Material$
carbon steel
Other characteristics
low-pressure
DN
Min.: 150 mm(5.906 in)Max.: 400 mm(15.748 in)
Temperature
80 °C(176 °F)
