نام محصول:
دریچه لغزنده

نام انگلیسی:

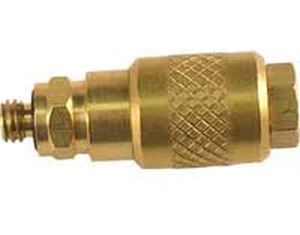

Slide valve MIL-MV-…-.

برند:
Beswick Engineering Co, Inc.

مشخصات:
The Beswick MIL-MV series metering valve contains an adjustable orifice. The orifice meters fluid flow, regardless of flow direction through the valve. The o-ring seals fit to make the valve insensitive to vibration, preventing inadvertent changes to the setting.

Effective Orifice: The maximum effective orifice should be selected from the options below (0.011”-0.055”, or 0.28-1.4mm), based on the approximate maximum flow needed in the application. All configurations are adjustable down to a fully closed bubble-tight shut off.

Adjustment: The knurled sleeve rotates 360 degrees and is restricted from sliding axially. An O-ring is fitted into an eccentric cavity within the valve, in the same plane as the radial inlet orifice. This O-ring is pressed against the radial inlet orifice when the valve is closed and becomes free of the hole as the sleeve rotates.

Approximate Weight: 16g in brass and 303 stainless. Weight will vary slightly, depending on configuration.

Porting: 10-32 external threaded inlet and 10-32 internal threaded outlet ports.

Features

Twist sleeve adjustment

Inline mounting for ease of installation

Different orifice sizes can be selected to be compatible with the approximate maximum flow needed in the application.

توضیحات:
Type
slide

Operation
manual

Function
flow control, adjustment, metering

Media
for water, for oil, for chemical products, for fuel, for gas, for air

Body$
threaded, in-line, miniature

Applications
for the chemical industry, for the food industry, for pharmaceutical applications, for vacuum, instrumentation, for medical applications, laboratory, for the semiconductor industry, for cylinders

Material$
brass, stainless steel

Other characteristics
compact, corrosion-resistant, chemical-resistant

DN
Min.: 0 mm(0 in)Max.: 1.4 mm(0.055 in)

Pressure
Min.: 0 psiMax.: 200 psi
