نام محصول:
دریچه دو بلوک و تاج

نام انگلیسی:
Double block-and-bleed valve D3B

برند:
Onis Line Blind

مشخصات:

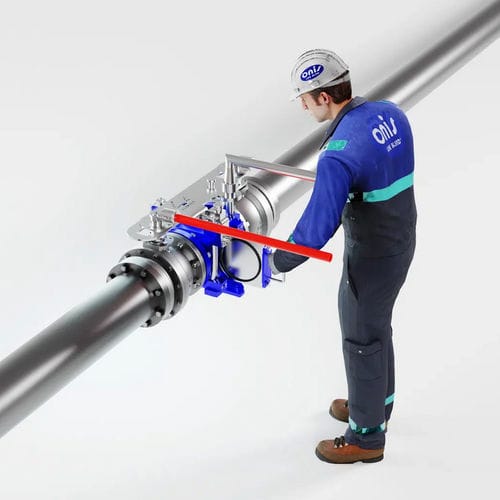

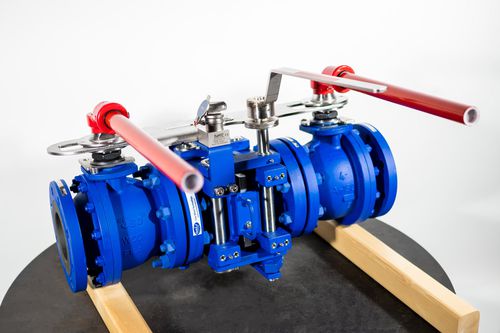

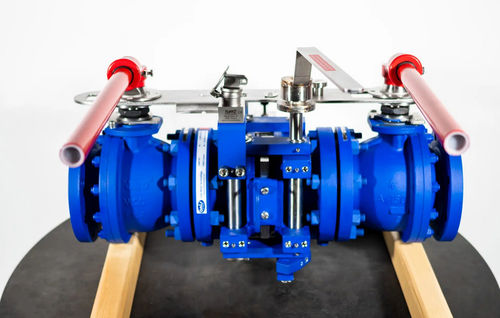

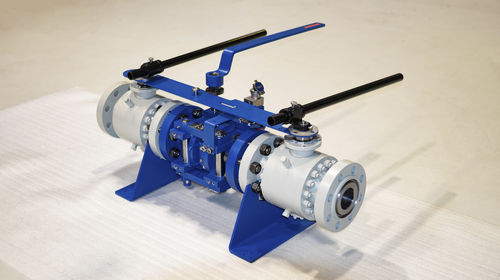

Onis Double Block Bleed and Blind (D3B) is a complete positive isolation solution in one device including one upstream valve, one quick action line blind and one downstream valve. The mechanical safety interlock between the Line Blind and the valves prevents any operation of the Line Blind if the valves remain open, there is no risk to operate under pressure. This patented safety device was designed to avoid operational risk related to human factors in congested areas and critical applications.

The upstream and downstream ball valves are connected to the flanges of the ONIS line blind.

Drains ports are drilled directly in the thickness of the ONIS Line blind’s flanges.

A mechanical interlock avoids the operator to open the pipe to the atmosphere if the ball vales have not been fully shut off.

For example : Fluid is passing through the equipment

To isolate the pipe proceed as hereafter :

Shut off the upstream and downstream valve

Open the bleeder ports in order to depressurize and drain the dead volume captured between the two valves which it is the smallest possible volume by design.

Move the interlock mechanism

Proceed to the operation of the ONIS line blind, blind pipe and go back to clamp ONIS’ seats position;

Move backward the mechanical interlock in order to secure the blinding position

Safety procedure during piping blinding / deblinding operations require every time at least 3 steps :

Shut off the upstream and downstream valves of the blinding / deblinding device which can be a spade or figure 8.

Depressurize the pipe by open drain port upstream and downstream.

Drain the liquid from the pipe if any.

توضیحات:
Operation
manual

Function
isolation, double block-and-bleed

Body
stainless steel, carbon steel

Applications
for the petroleum industry, for industrial applications, furnace, for the chemical industry, for the food industry, for storage tanks, for hazardous environments, turbine, for burners, for granulates, for process applications, for explosive atmospheres, for fire safety applications, for pharmaceutical products, for abrasive products, for plastics, for pipelines, for food, refinery, for boiler, for HVAC installations, for liquids, for the pharmaceutical industry, for the gas industry, for vacuum, for metallurgy, for powders, fuel, for compressors, laboratory, for lubrication units, pipe, for tank, for pump

Fluid specification
for aggressive media, for corrosive fluids, for abrasive fluids, for flammable fluids, for hazardous fluids, for low-viscosity fluids, for fluids with lubricating properties, for powders, for toxic fluids, for viscous fluids

Other characteristics
compact, ISO, ANSI, high-pressure, locking, with seal, high-temperature, low-pressure, fire-safe, custom, quick-closing, ATEX

DN
Max.: 10 inMin.: 1 in

Pressure
Max.: 420 bar(6,091.6 psi)Min.: 0 bar(0 psi)

Temperature
Max.: 650 °C(1,202 °F)Min.: -120 °C(-184 °F)
